| Place of Origin: | China |
|---|---|
| Brand Name: | ISOCHI |
| Certification: | ISO |
| Model Number: | 39773 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement |
| Delivery Time: | 2 work days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | 300 Piece/Pieces per Week |
| Item Name:: | Spindle Collet | Model No.:: | 39773 |
|---|---|---|---|
| Material:: | Stainless Steel | Ranout:: | 0.005mm |
| Customized:: | Accept | Payment Term:: | Western Union, T/T,Paypal |
| High Light: | cnc machine collet,cnc router collet |
||

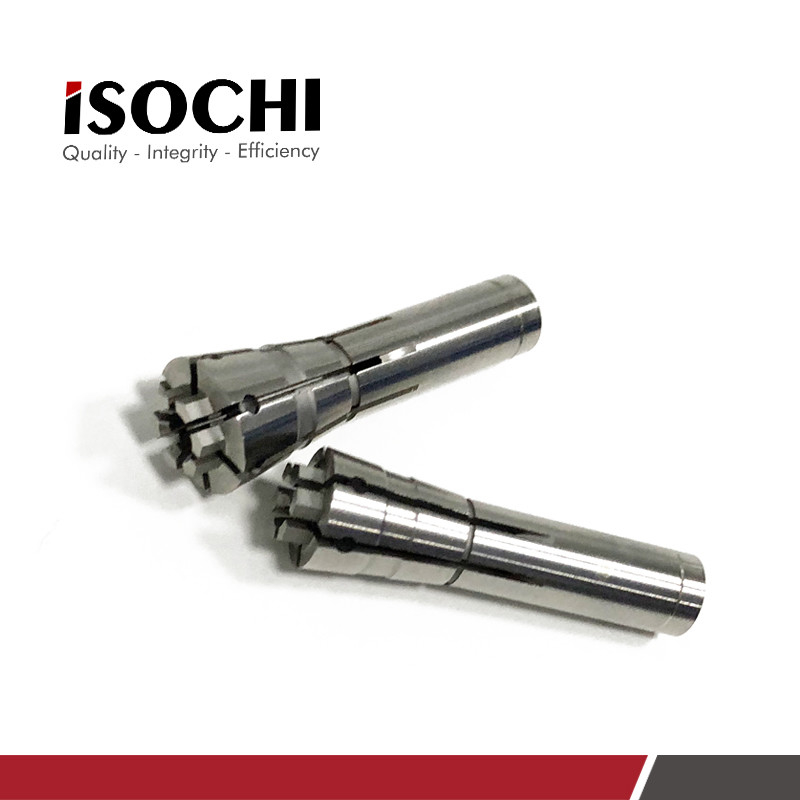

M320 - 64C / ABWR80 PCB Spindle Collet , Stainless Steel Spindle Parts 39773
Specifications:
|
Item Name:
|
Spindle Drill Collet
|
|
Model No.:
|
39773
|
|
Material:
|
Stainless Steel
|
|
Ranout:
|
0.005mm
|
|
Customized:
|
Accept
|
|
Customized
|
Yes
|
|
Condition
|
New Collet
|
|
Brand
|
ISOCHI
|
What is collet?
Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.
We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using ISOCHI collets will enhance the performance of your spindle and extend their working life.
Specifications:
| Collet list and application spindle | ||
| Model | PN | Application other Spindle |
| D1331-17 | 17593;17809;20924 | D1201-02 ,06 ,19 , 20 ,21 ,33 ,34 |
| D1263-03 ,04 ,06 ,07 ,08 ,09 , | ||
| D1199-03 ,D1210 ,ABW110 | ||
| 1531-01 ,02 ,04 ,06 ,09 , | ||
| 1331-01 ,02 ,03 ,07 ,08 ,09 ,10 , 13 | ||
| D1331-17 ,19 ,20 ,21 ,24 ,27 ,28 ,38 | ||
| D1331-26 | 38431;34381 | D1404 ,D1502 ,D1686-01 ,02 ,03 ,04 |
| 1331-25 ,26 ,29 ,31 | ||
| D1331-36 | 38730 | D1331-36 |
| D1331-41 | 37462 | 1331-08,30,32,41,42,44,D1201 |
| 1531-08 ,SM170 , MCT150 ,160 ,170 | ||
| D1331-47 | 41928 | 1331-22 ,1331-47 |
| D1331-49 | 41611 | 1331-49 ,48 ,51 |
| D1686 | 40374 | D1686-10 ,11 ,12 ,13 ,15 ,16 ,18 ,19 ,23 |
| D1722-03 | 1264 ,1600 , H501 ,H512 ,1600-01 ,H516D | |
| D1769 | 41611 | 1769-06 ,10 |
| D1787 | D1787-01 ,D1787-07 | |
| D1822-01 | D1822-09 | |
| M320-24 | 11257 ; 08085A1 | D1519-01 , M320-01 ,03 ,05 ,07 ,10 ,11 ,16 ,17 |
| M320-18, 19 , 20 ,22 ,23 ,27 ,28 ,29 ,30 ,36 ,47 ,52 | ||
| M320-38 | 16194 | 1303 , M320-43 , M320-38 ,M320-55 |
| M320-64 | 16703 | M320-46,50,62,63,64,65,66 |
| M320-63A , 64A ,65A , 66A ,D1170-04,D1303-01, | ||
| D1303-02,D1524-01,02,03,04,05 | ||
| M320-64C | 39773 | M320-64C |
| H242B | H242B | |
| HR08A | HR08A | |
| H912B | ABL-125 ,ASC125 , AW125 , 127480 ,88288 | |
| H916A3 | H916A3 , H916A | |
| H916C | 143480 | H916B |
| H920B | AW160-08 , AW160 , H920A | |
| H920E1 | H920E1 | |
| ABWR80 | 17508 ; 216844-10 , | 1251-03,ABWR80,M320-60,ABW80 |
| ABW125 | 41844;414741-01 | D1199-06,10,ABW125,ABW-170,D1473-07 |
| SC-53 | 53533;033503 | SC-53 |
| SC-63 | 63503 | SC-63 |
| SC-3163 | 263508 ; 263506; 263504 | SC-3263,HB60B,61B,HB60D,RA-60,KL-60B |
| W-62 | 40508518 | W-62 |
| W-69 | 230505 | W-69 |
| HB50B | 230504 | HB50 |
| 168 | 168 | |
| SM-220 | MCT220 | |
| AB200 | AB200 | |
| SFA2300 | SFA2300 | |
| More than above models can offered please contact us for details. | ||
OUR SERVICE:
1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Provide English manual or operating video
Collet Maintenance:
Collet Maintenance - How Often?
It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.
ISOCHI suggest the following maintenance intervals:-
Removable collets every 100 operating hours
Bonded collets every 24 operating hours
The actual frequency of collet maintenance is dependent on application, usage and environment, and could be shorter or longer than the times suggested above.
Please contact ISOCHI if you would like advice on your particular situation.
