10 Mm TMS Collet PCB CNC Stainless Steel Transfer For Excellon Machine

Basic Information
Place of Origin: China
Brand Name: ISOCHI
Certification: ISO
Model Number: Excellon Machine Collet
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement
Delivery Time: 2 work days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 300 Piece/Pieces per Week
Detail Information
Product Name: Transfer/TMS Collet Application: CNC PCB Excellon Machine
Precision: 1/8" Holding Range: 2.5mm/0.98"
Dynamic Ranout: 9~13μm Stastic Ranout: 2um
Material: Stainless Steel Color: Silver
High Light:

PCB CNC SS TMS Collet

,

10 mm TMS Collet

,

PCB CNC Transfer Collet


Product Description

PCB CNC Stainless Steel Transfer/TMS Collet 10 mm For Excellon Machine



Specifications of Transfer Collet:



Material Stainless Steel
Color Silver
Precision 1/8"
Inner Dameter 2.5mm/0.98"
Total Length 28.5mm/1.12"
Dynamic ranout 9~13μm
Stastic ranout 2um
Customized Yes
Condition New Collet
Application CNC PCB Excellon Machine



Collet material-stainless steel:


Stainless steel refers to steel that is resistant to corrosion by weakly corrosive media such as air, steam, and water, and chemically corrosive media such as acid, alkali, and salt. It is also called stainless acid-resistant steel. In practical applications, steel that is resistant to corrosion by weakly corrosive media is often referred to as stainless steel. Stainless steel is an extremely thin, strong and stable chromium-rich oxide film (protective film) formed on its surface. Prevent oxygen atoms from infiltrating and continuing to oxidize, and obtain rust resistance.



Reasons for stainless steel material:


1.Impact and fatigue resistance
2.Corrosion resistance
3.Polishing performance
4.Heat resistance



ISOCHI collet advantages:


The chuck is light weight, fast in acceleration, little affected by centrifugal force, and high in concentricity. It can be exchanged quickly when changing parts. Suitable workpiece size range is limited. Long axial dimension is more suitable for small parts. More suitable for workpieces with uniform diameter and size. Throughout the production process, the collet can significantly save processing time.

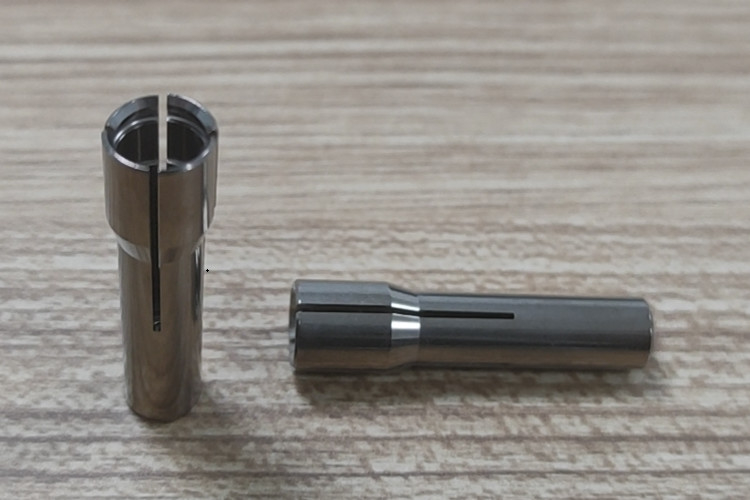

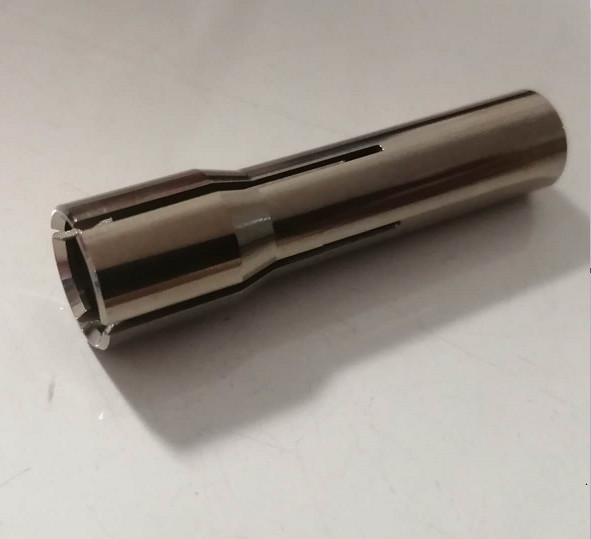

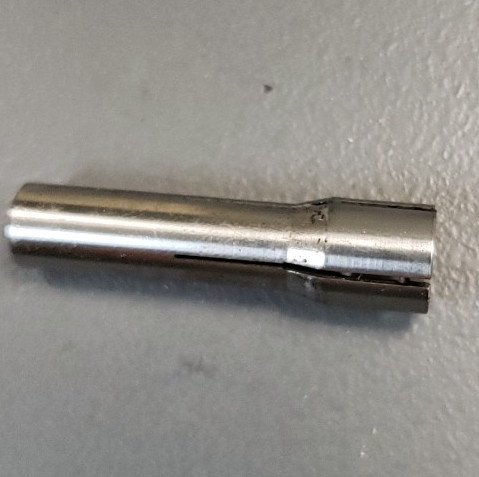

More pictures of Transfer Collet ​:

10 Mm TMS Collet PCB CNC Stainless Steel Transfer For Excellon Machine 0



About packaging:


Shock-proof decompression bubbles, all-round sealed box, exquisite product packaging, reduce the damage of the product in transportation, please rest assured to buy.


About after sales:


If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.
