Precision Spindle Collet 17593 For Drilling Excellon Pluritec Posalux Schmoll Machine

Basic Information
Place of Origin: China
Brand Name: ISOCHI
Certification: ISO
Model Number: Drilling Machine Collet
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement
Delivery Time: 2 work days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 300 Piece/Pieces per Week
Detail Information
Product Name: Driller Collet 17593 Application: PCB CNC Pluritec/Schmoll/Excellon/Posalux Machine
Precision: 1/8" Holding Range: 2.5mm/0.98"
Dynamic Ranout: 9~13μm Stastic Ranout: 2um
Material: Stainless Steel Color: Silver
High Light:

17593 Spindle Collet

,

17593 cnc collet

,

Schmoll Machine Spindle Collet


Product Description

Precision Spindle Collet 17593 for Drilling Excellon, Pluritec, Posalux, Schmoll Machine





Specifications of Collet 17593:



Material Stainless Steel
Color Silver
Precision 1/8"
Inner Dameter 2.5mm/0.98"
Total Length 28.5mm/1.12"
Dynamic ranout 9~13μm
Stastic ranout 2um
Customized Yes
Condition New Collet
Application CNC PCB Pluritec/Schmoll/Excellon/Posalux Machine



Reasons for stainless steel material:


1. Impact and fatigue resistance
2. Corrosion resistance
3. Polishing performance
4. Heat resistance



ISOCHI collet advantages:


The chuck is light weight, fast in acceleration, little affected by centrifugal force, and high in concentricity. It can be exchanged quickly when changing parts. Suitable workpiece size range is limited. Long axial dimension is more suitable for small parts. More suitable for workpieces with uniform diameter and size. Throughout the production process, the collet can significantly save processing time.



What is collet?



Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.

We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet.

Using ISOCHI collets will enhance the performance of your spindle and extend their working life.

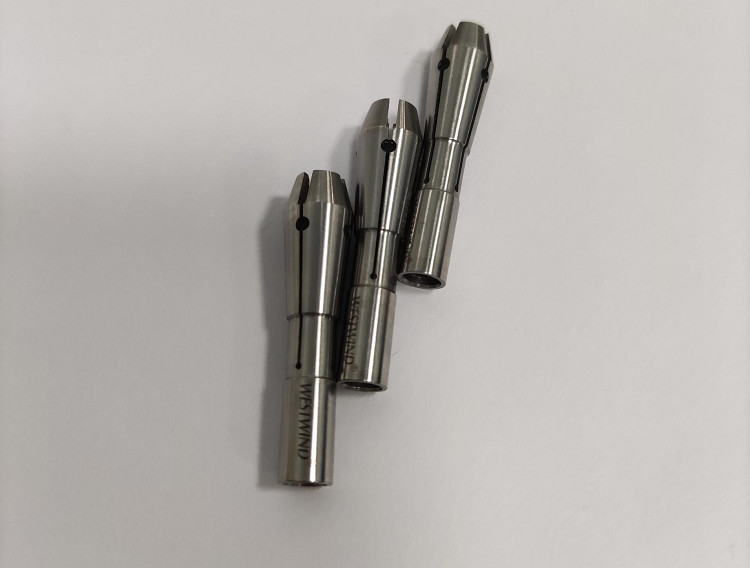

More pictures of Collet 17593:



Precision Spindle Collet 17593 For Drilling Excellon Pluritec Posalux Schmoll Machine 0



About packaging:


Shock-proof decompression bubbles, all-round sealed box, exquisite product packaging, reduce the damage of the product in transportation, please rest assured to buy.


About after sales:


If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.
