| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | ISOCHI |
| Certification: | ISO |
| Model Number: | 180krpm |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Usually in standard package, Carton packing,can meet custormer's requirement |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 300 Piece/Pieces per Week |
| Brand Name:: | ISOCHI | Place Of Origin:: | Jiangsu,China |
|---|---|---|---|
| Material:: | Aluminum | Customized:: | Yes |
| Lead Time:: | 7 Days After Payment | Application:: | Schmoll Drilling Machine |
| High Light: | Schmoll Machine pressure foot cup,180krpm Micodrilling Pressure Foot Body,Micodrilling pressure foot cup |
||
Micodrilling Pressure Foot Body For Schmoll Machine High Precision
Descriptions of Micodrilling Pressure Foot Body:
The pressure foot cup is an indispensable device to achieve efficient vacuum suction of the pressure foot and high-quality drilling, and also plays a key role in drilling quality.
| Brand Name: | SOCHI | Place Of Origin: | Jiangsu,China |
| Material: | Aluminum | Customized: | Yes |
| Lead Time: | 7 Days After Payment | Application: | CNC PCB Schmoll Drilling Machine |
Pressure foot assembly:
In the case of the correct selection of the cover plate and the backing plate, the pressure foot assembly consisting of the synchronous cylinder, the chip suction cover and the pressure foot is a key factor affecting the quality of the drilling. In the past when drilling holes with a diameter of 0.5mm or more, under the condition that the CPK (Process Capability Index) ≥ 1.33 on the reverse side of the floor and the hole wall roughness ≤ 25.4μm were used, a fixed chip suction cover and a single-hole pressure foot were usually used.
Form and material of pressure foot:
The main function of the pressure foot is to compact the workpiece system. Through its slotted ventilation structure, it provides air supplement for the vacuum system, forms a better convection system, and has a larger buffer effect. Different brands of mechanical drilling design manufacturers based on different considerations, the material of the pressure foot is metal materials and non-metal materials.
PCB numerical control drilling machine as an important equipment in printed circuit board processing, its processing quality has a great impact on the performance of electronic products.
Raw material selection:
Aluminum
(1) Light weight, good rigidity and high strength
(2) Good fire resistance
(3) Easy to recycle, pollution-free, environmentally friendly.
Demarcated customized service process:
Provide drawings / samples and quantity - quote- contract- produce- surface treatment - precision measurement - finished product packaging - pre shipment inspection - shipment
Why us?
1. The raw materials of our products are with nice quality, and our products have good physical and chemical properties, wear resistance and long service life
2. We have professional technical designers, engaged in CNC lathe for more than 10 years.
3. Constantly strive for the perfection of quality, the surface treatment of the product is meticulous, no burr, and strictly control every details.
4. Strict confidentiality, professional service, reasonable price, excellent quality, exquisite workmanship, timely delivery.

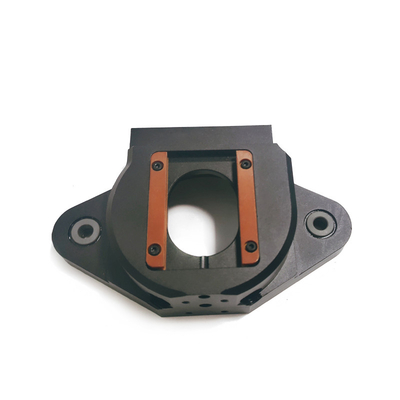

Product show of Micodrilling Pressure Foot Body:
