| Place of Origin: | CHINA,JiangSu |
|---|---|
| Brand Name: | ISOCHI |
| Certification: | SGS |
| Model Number: | H912B |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement. |
| Delivery Time: | 2 work days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | 350 Piece/Pieces per Week |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Structure: | 0.01mm&0.008mm | Precision: | 1/8" |
| Application: | PCB Drilling Machine | Usage: | ABL125/H912 Spindle |
| High Light: | cnc machine collet,cnc router collet |
||
|
Product Name
|

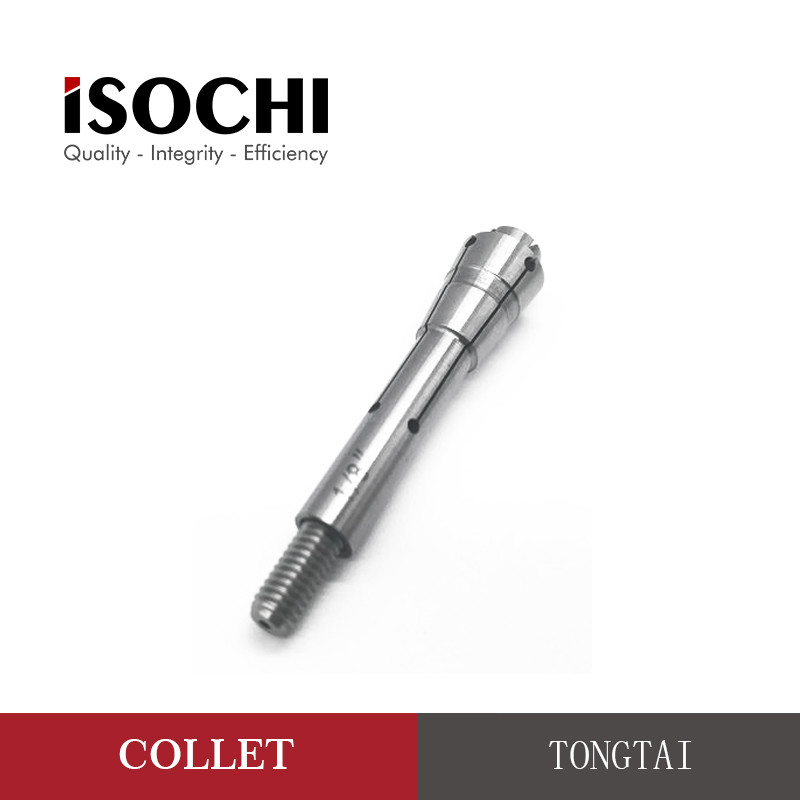

High Precision 0.00034" Spindle Collet H912B 127480 88288 40374 for PCB Drilling Machine
|
|
Material
|
Stainless Steel
|
|
Color
|
Silver
|
|
Standard
|
SGS
|
|
Precision
|
1/8" |
| Inner Diameter |
3.175mm
|
|
Dynamic ranout
|
15μm
|
|
Stastic ranout
|
2um
|
|
Total length
|
32mm
|
|
Head diamter
|
11.1mm
|
|
End diameter
|
9.5mm
|
|
Customized
|
Yes
|
|
Condition
|
New Collet
|
|
Used
|
Hitachi Drilling Machine
|
|
Brand
|
ISOCHI |
Descriptions:
What is collet?
Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.
We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using ISOCHI collets will enhance the performance of your spindle and extend their working life.
Collet Maintenance:
Collet Maintenance - How Often?
It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.
ISOCHI suggest the following maintenance intervals:-
Removable collets every 100 operating hours
Bonded collets every 24 operating hours
The actual frequency of collet maintenance is dependent on application, usage and environment, and could be shorter or longer than the times suggested above.
Please contact ISOCHI if you would like advice on your particular situation.
Product show:
