| Place of Origin: | CHINA,JiangSu |
|---|---|
| Brand Name: | ISOCHI |
| Certification: | SGS |
| Model Number: | CR2000 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | plastic case+ bag+carton |
| Delivery Time: | 2 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Piece/Pieces per Week |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Structure: | Spring Clamp | Precision: | 1/8” |
| Application: | Spindle 420/480/820/880 | Application Machine: | PCB Excellon Routing Machine |
| High Light: | high precision collet,cnc router collet |
||
High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
Specifications:
|
Product Name
|
High Precision Spindle Parts Router Collet
|
|
Material
|
Stainless Steel
|
|
Certificate
|
SGS
|
| Application | PCB Excellon Routing Machine/Spindle 420/480/820/880 |
|
Used
|
Spindle parts
|
What is collet?
Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.
We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using ISOCHI collets will enhance the performance of your spindle and extend their working life.
Collet Maintenance:
Collet Maintenance - How Often?
It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.
ISOCHI suggest the following maintenance intervals:-
Removable collets every 100 operating hours
Bonded collets every 24 operating hours
The actual frequency of collet maintenance is dependent on application, usage and environment, and could be shorter or longer than the times suggested above.
Please contact ISOCHI if you would like advice on your particular situation.
Collet list and application spindle:
| Model | PN | Application other Spindle |
| D1331-17 | 17593;17809;20924 | D1201-02 ,06 ,19 , 20 ,21 ,23,27,30,31,33 ,34,36 |
| D1263-01,03 ,04 ,06 ,07 ,08 ,09 | ||
| D1199-03 ,D1210 ,ABW110,D1131 | ||
| D1531-01 ,02A,04 ,06 ,09A | ||
| D1331-01 ,02,03 ,07 ,08 ,09 ,10 , 13 | ||
| D1331-17 ,19 ,20A,21 ,24 ,27 ,28 ,38 | ||
| D1331-26 | 38431;34381 | D1404 ,D1502 ,D1686-01 ,02 ,03 ,04 |
| D1331-25 ,26 ,29 ,31 | ||
| D1331-36 | 38730/39730 | D1331-36 |
| D1331-41 | 37462 | D1331-08,24,30,32,41,42,44 |
| D1201,SM170, D1531-08,42;MCT150 ,160 ,170 | ||
| D1331-47 | 41928 | D1331-22 ,1331-47 |

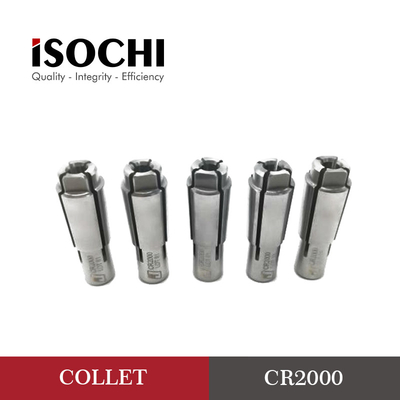

Product show:
