| Place of Origin: | China |
|---|---|
| Brand Name: | ISOCHI |
| Model Number: | CR2000 3.175mm |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement |
| Delivery Time: | 2 work days |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 300 Piece/Pieces per Week |
| Name: | CR2000/QD820 Router Collet/Chuck | Application Machine: | CNC PCB Excellon Machine |
|---|---|---|---|
| Application Spindle: | 420/480/820/880 Spindles | Jaws: | 4 Jaws |
| Material: | Stainless Steel | Total Length: | 28.5mm/11.22" |
| Inner Diameter: | 1.0mm/0.04" | Payment: | TT/WU/Paypal |
| Delivery Time: | About 2-3 Working Days After Payment | Color: | Silver |
| High Light: | high precision collet,cnc router collet |
||

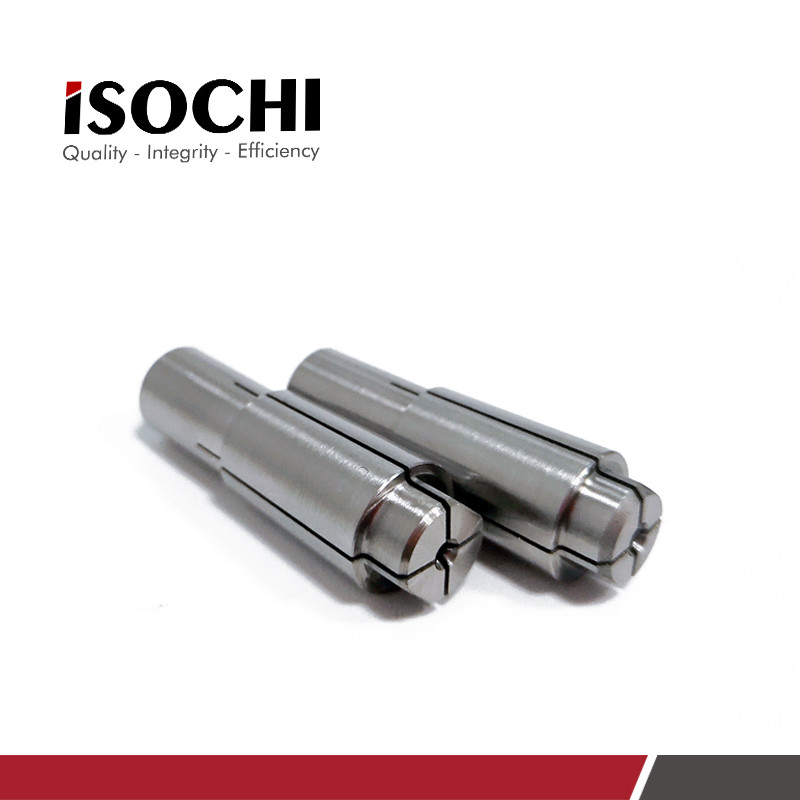

Spindle Collet CR2000 1.0mm/0.04" UNC10-32 28.5mm Length Excellon Machine Chuck
| Item Name: | CR2000 Collet/chuck |
| Color: | Sliver |
| Length | 28.5mm/11.22" |
| MOQ: | 1 PCS |
| Inner diameter: | 1.0/1.5/2.5/2.8/3.175mm Available |
| Brand: | ISOCHI |
| Application: | PCB Excellon Routing Machine/Spindle 420,480,820,880 |
What is collet?
Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.
We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using ISOCHI collets will enhance the performance of your spindle and extend their working life.
| Collet list and application spindle | ||
| Model | PN | Application other Spindle |
| D1331-26 | 38431;34381 | D1404 ,D1502 ,D1686-01 ,02 ,03 ,04 |
| 1331-25 ,26 ,29 ,31 | ||
| D1331-36 | 38730 | D1331-36 |
| D1331-41 | 37462 | 1331-08,30,32,41,42,44,D1201 |
| 1531-08 ,SM170 , MCT150 ,160 ,170 | ||
| D1331-47 | 41928 | 1331-22 ,1331-47 |
| D1331-49 | 41611 | 1331-49 ,48 ,51 |
| D1686 | 40374 | D1686-10 ,11 ,12 ,13 ,15 ,16 ,18 ,19 ,23 |
| D1722-03 | 1264 ,1600 , H501 ,H512 ,1600-01 ,H516D | |
| D1769 | 41611 | 1769-06 ,10 |
| M320-24 | 11257 ; 08085A1 | D1519-01 , M320-01 ,03 ,05 ,07 ,10 ,11 ,16 ,17 |
| M320-18, 19 , 20 ,22 ,23 ,27 ,28 ,29 ,30 ,36 ,47 ,52 | ||
| M320-38 | 16194 | 1303 , M320-43 , M320-38 ,M320-55 |
| M320-64 | 16703 | M320-46,50,62,63,64,65,66 |
| M320-63A , 64A ,65A , 66A ,D1170-04,D1303-01, | ||
| D1303-02,D1524-01,02,03,04,05 | ||
| M320-64C | 39773 | M320-64C |
| More than above models can offered please contact us for details. | ||
ISOCHI collet advantages:
The chuck is light weight, fast in acceleration, little affected by centrifugal force, and high in concentricity. It can be exchanged quickly when changing parts. Suitable workpiece size range is limited. Long axial dimension is more suitable for small parts. More suitable for workpieces with uniform diameter and size. Throughout the production process, the collet can significantly save processing time.
Reasons for stainless steel material:
1.Impact and fatigue resistance
2.Corrosion resistance
3.Polishing performance
4.Heat resistance
Service life
Please refer to the replacement standard of Westwind, the warranty period of ISOCHI is 2 months.
More pictures:
About delivery:
Common products are delivered within 3 days and will be shipped in the order they are ordered. Negotiable if urgent.
About packaging:
Shock-proof decompression bubbles, all-round sealed box, exquisite product packaging, reduce the damage of the product in transportation, please rest assured to buy.
About after sales:
If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.
