AEMG Anderson Pressure Foot Cup High Precision Customized Available

Basic Information
Place of Origin: China
Brand Name: SOCHI
Certification: ISO
Model Number: for AEMG
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: box + carton
Delivery Time: within 2 days
Payment Terms: T/T,Western Union, ,Paypal
Supply Ability: 1000 PCS/month
Detail Information
Brand Name: ISOCHI Place Of Origin: China
Application For:: AEMG / ANDERSON Item Name:: Pressure Foot Cup
Lead Time:: In Stocks Condition:: New
Delivery Port::: Shanghai Package:: Box + Carton
Material:: Aluminum Payment Term:: TT
High Light:

pressure foot components


pressure foot accessories

Product Description

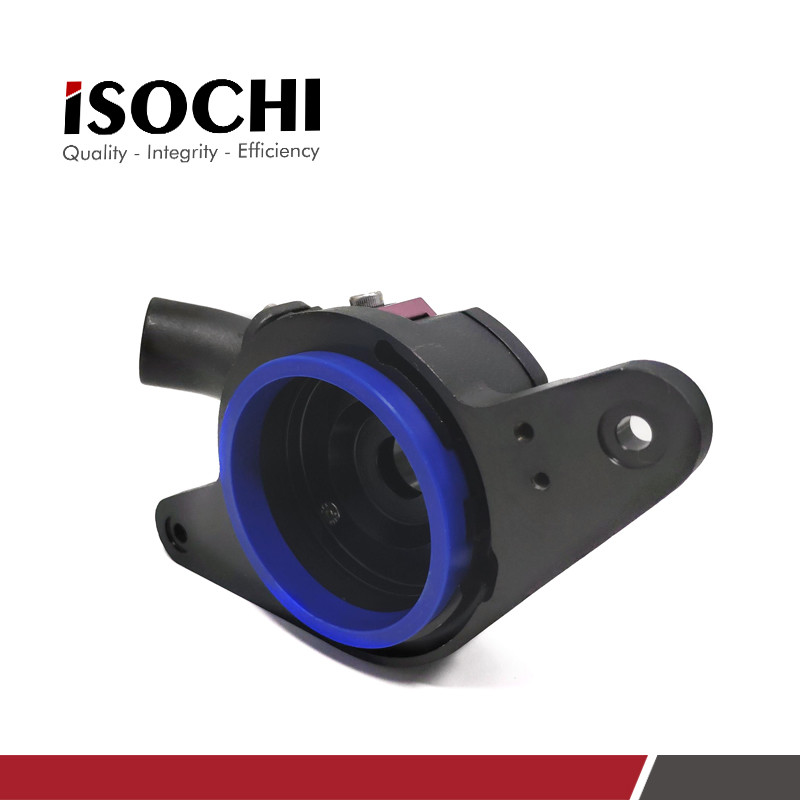

AEMG Anderson Pressure Foot Cup High Precision Customized Available



The pressure foot cup is an indispensable device to achieve efficient vacuum suction of the pressure foot and high-quality drilling, and also plays a key role in drilling quality.

AEMG Anderson Pressure Foot Cup High Precision Customized Available 0

PCB numerical control drilling machine as an important equipment in printed circuit board processing, its processing quality has a great impact on the performance of electronic products. Its suck

The combined structure of chip cover and pressure foot is one of the main factors affecting the quality of hole processing. Excellent design and combination of the combined structure of the suction hood and the pressure foot

Item Name: Pressure Foot Cup
Color: Black
Payment terms: Western Union, T/T,Paypal
Application: AEMG Anderson routing machine
Customize: Available
Material: Auminum/stainless steel


3.Details pictures:
AEMG Anderson Pressure Foot Cup High Precision Customized Available 1
Technique picture:
AEMG Anderson Pressure Foot Cup High Precision Customized Available 2

Form and material of pressure foot:

The main function of the pressure foot is to compact the workpiece system. Through its slotted ventilation structure, it provides air supplement for the vacuum system, forms a better convection system, and has a larger buffer effect. Different brands of mechanical drilling design manufacturers based on different considerations, the material of the pressure foot is metal materials and non-metal materials. Metal materials are mainly stainless steel (usually SUS304) and brass materials (C3604BD, equivalent to HPb59-1). Non-metal materials are mainly PA66, PA6, POM and PU. The main considerations for the use of metal materials are relatively high hardness, wear resistance, and long service life (normally 8-10 months can be used); the disadvantage is that the buffer effect is not obvious, and it has not stabilized for a long time.

4.Raw material selection:


(1) Light weight, good rigidity and high strength

(2) Good fire resistance

(3) Easy to recycle, pollution-free, environmentally friendly.

Demarcated customized service process:

Provide drawings / samples and quantity - quote- contract- produce- surface treatment - precision measurement - finished product packaging - pre shipment inspection - shipment


5.About delivery:
Common products are delivered within 3 days and will be shipped in the order they are ordered. Negotiable if urgent.
About packaging:
Shock-proof decompression bubbles, all-round sealed box, exquisite product packaging, reduce the damage of the product in transportation, please rest assured to buy.
About after sales:
If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.
