| Place of Origin: | China |
|---|---|
| Brand Name: | ISOCHI |
| Certification: | ISO |
| Model Number: | RYT-1000 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Standard wooden case or according to customers' requirement |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Set/Sets per Month |
| Model No.:: | RYT-1000 | Space Usage:: | 1.8m × 1m |
|---|---|---|---|
| Air Temperature:: | +5~+40℃ | Power:: | 220V 50/60Hz |
| Light Pipe Type:: | Closing Pipe | Maximum Tube Voltage:: | 50kV |
| Windows:: | Φ25mm | Monitoring Area:: | 1060 Mm *800mm |
| High Light: | pcb x ray inspection equipment,pcb x ray machine |
||
1.Working Conditions:
| Space Usage: | 1.8m × 1m |
| Air temperature: | +5~+40℃ |
| Relative humidity: | ≤80% |
| Power Supply: | 220V 50/60Hz |
2.Product Datas:
| Light Pipe Type | Closing pipe |
| Maximum tube voltage | 50kV |
| Maximum tube current | 1.0mA |
| Focus size | 0.1 *0.1mm |
| Detector | High - resolution X - ray CCD camera |
| Focus size resolution | 20lp/mm |
| Windows | Φ25mm |
| Magnification | 10-15-20 times |
| Monitoring Area | 1060 mm *800mm |
| Machine Body Size | H1600 mm *W700 mm *L1200mm |
| Weight | 200kg |
| Power supply | AC220V 50/60Hz |
| Radiation dose | ＜1μSv/h |
3.Product Characteristics:
①..Modular mechanical structure for easy maintenance
②Various software functions such as measurement and measurement
③.10-20 times optical zoom for micro hole detection
4.Production Function:
RYT-1000 is mainly used for the analysis and measurement of the pre-lamination process and the post-drilling process in the PCB production process of the multi-layer circuit board. Accurate measurement and analysis of point-to-point, point-to-line, radius, diameter, concentricity, etc., to find process errors in advance, to avoid batch quality problems.

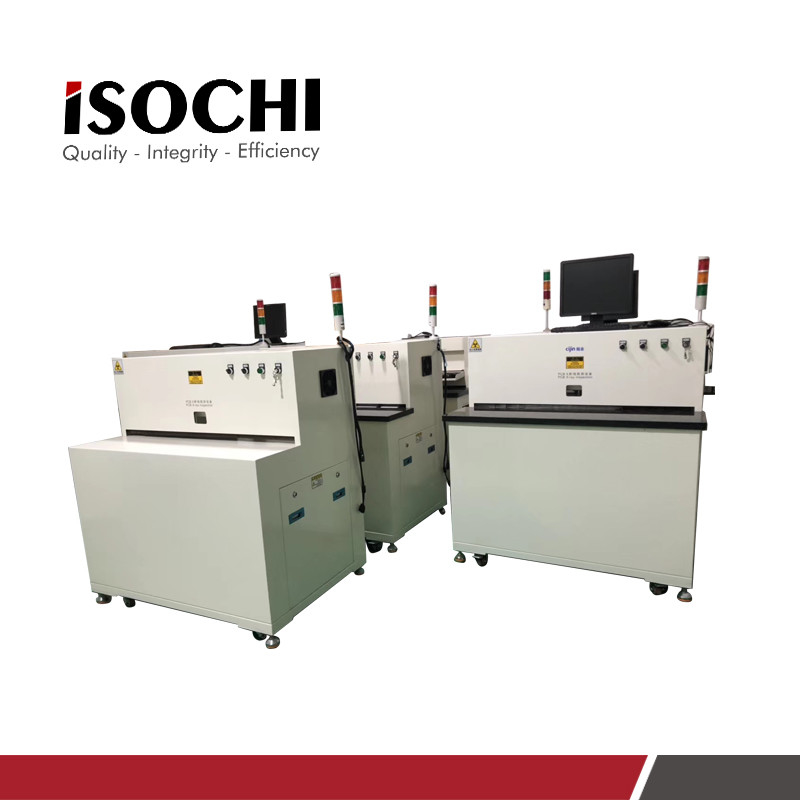

5.More pictures:
