Detail Information

Model No.::	RYT-3000	Light Tube Type::	Enclosed X-ray Tube
Maximum Tube Voltage::	90kV	Maximum Tube Current::	0.15mA
Speed::	20 Fps	Resolution::	1176*1104
Size Of Loading::	650mm*550mm（other Sizes Can Be Customized ）
Highlight:	pcb x ray inspection equipment , x ray inspection machine

Product Description

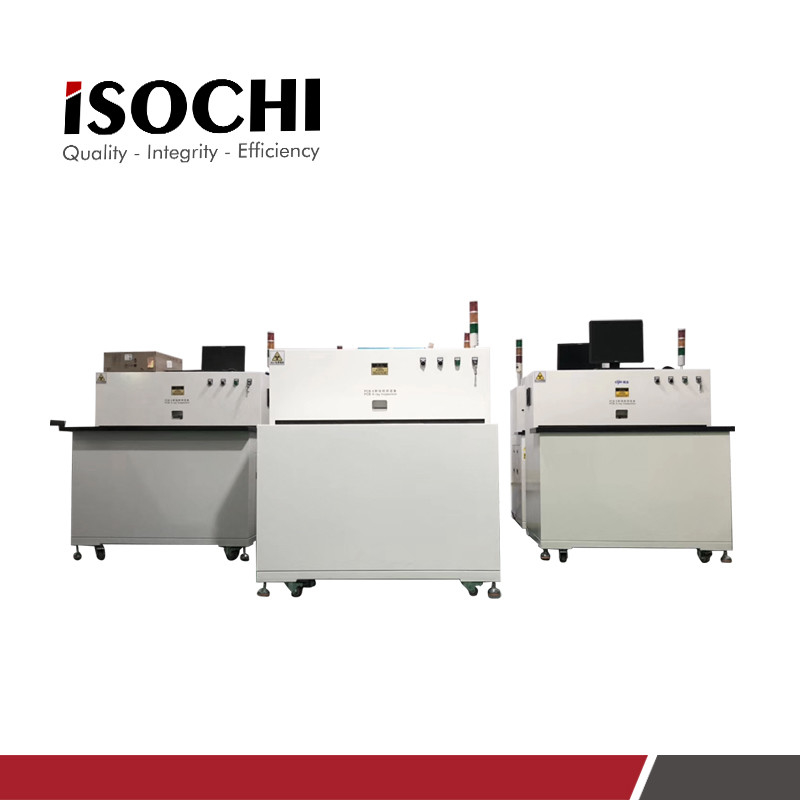

**Multipurpose PCB Inspection Machine 90kV Enclosed X Ray Tube 1176*1104 White**

1.Application:

1. Semiconductor

2. Electronic Connector Module

3. Automotive electronics

4. BGA Inspection

5. PCB,FPC,PCBA

6. Die Castings

7. LED

8. Tyre

2.Technical Parameters:

Project		Content
Equipment Model No.		RYT-3000
X-RAY transmitting tube (HAMAMATSU,Japan)	Light tube type	Enclosed X-ray tube
	Maximum tube voltage	90kV
	Maximum tube current	0.15mA
	The focal spot size	5um
	Amplification factor	Geometric multiplier: 150 system multiplier: 1000
Detector	Speed	20 fps
	Resolution	1176*1104
	Angle of inclination	±45° incline
Cabinet Specification	Size of loading platform	650mm*550mm(other sizes can be customized )

3.Main Function:

Function	Advantages
X-ray tube and detector can move along the Z axis	Defects below 2um can be detected
Software sets voltage and current	Convenient maintenance, long service life
It can control the speed of the object carrier in the X-Y direction	Simple operation and short training time for operators
Editable detection program	Suitable for mass detection
The maximum inclination of detector is 45°	Semi-automatic identification of OK/NG products
Large navigation window, click the mouse to move the object table to the point	High repeatability accuracy
	Can accommodate all kinds of large size samples
	Allows a unique view of the sample

4.Features:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

Place of Origin:	China
Brand Name:	SOCHI
Certification:	ISO
Model Number:	RYT-3000

Minimum Order Quantity:	1 set
Price:	$62999-65689/set
Packaging Details:	Standard wooden case or according to customers' requirement
Delivery Time:	25 days
Payment Terms:	T/T, Western Union,Paypel
Supply Ability:	10 Set/Sets per Month
