PCB Pressure Foot Cup For CNC Linsong Routing Machine Aluminum Material

Basic Information
Place of Origin: China
Brand Name: ISOCHI
Certification: ISO
Model Number: for HiCNC
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: box + carton
Delivery Time: within 3 days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 1000 PCS/month
Detail Information
Brand Name: ISOCHI Place Of Origin: China
RPM:: 180k Application For:: For PCB HiCNC
Item Name:: Pressure Foot Cup Lead Time:: Within 3 Days
High Light:

pressure foot parts

,

pressure foot accessories


Product Description

PCB Pressure Foot Cup for CNC Linsong Routing Machine Aluminum Material High Precision



Discribtion:



Pressure Foot Cup is the irreplaceable part on PCB molding machine. It is placed on pneumatic rod to link with brush
parts for cleaning the PCBA that prevents PCBA from been corroded and oxdized. This new type pressure foot is
ued on the AEMG routing machine.



Specifications:



Item Name: Pressure Foot Cup
Color: as picture
MOQ: 1 PCS
Payment terms: Western Union, T/T,Paypal
Application: CNC PCB Tongtai Drilling Machine
Spindle Speed: 180krpm 200krpm



Basic Information:

Origin of place: China
Material: Aluminum/costing iron,etc
Samples: Avaialble



Pressure foot assembly:

The open area between the inner diameter of the pressure foot and the drill is more obvious than that under a single pressure foot. Reduced, PCB workpiece system is pressed more firmly and leveled. The most common presser foot switch on the market. It is mainly divided into two design concepts. One design concept is the design concept of the integration of the large and small pressure feet of the German Schmoll company. The large and small pressure feet of this structure are on the same flat sliding plate, as shown in Figure 2. The air cylinder is directly connected to the slide plate drive, or the steel wire rope is used to drive the air cylinder.

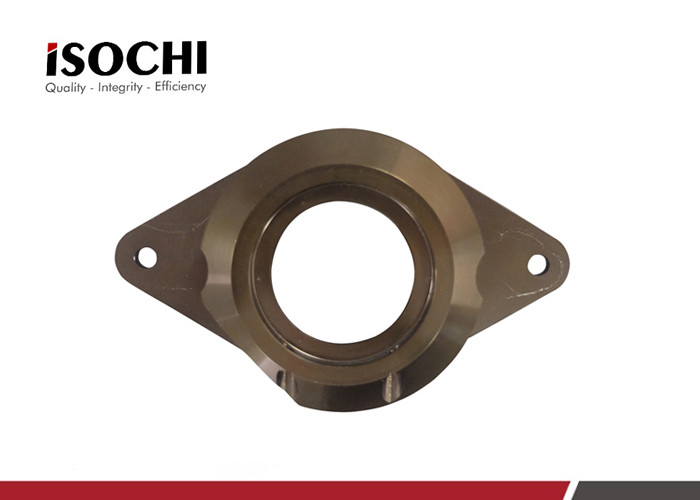

PCB Pressure Foot Cup For CNC Linsong Routing Machine Aluminum Material 0



Product show:

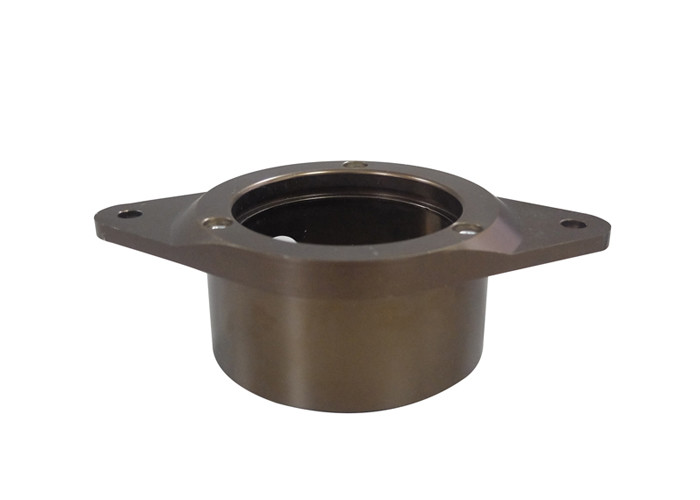

PCB Pressure Foot Cup For CNC Linsong Routing Machine Aluminum Material 1



Form and material of pressure foot :

Non-metal materials are mainly PA66, PA6, POM and PU. The main considerations for the use of metal materials are relatively high hardness, wear resistance, and long service life (normally 8-10 months can be used); the disadvantage is that the buffer effect is not obvious, and it has not stabilized for a long time. The use of industrial rubber materials (PU, PA6 PA66) mainly considers good vibration absorption characteristics. For the impact process, it can achieve a significant vibration absorption effect, and the amplitude can be reduced in a short time. The disadvantage is that the hardness is relatively low and it is not resistant to wear. Life is short, usually around a week. Using ABAQUS software simulation, adjust the presser foot material, analyze with 100N presser foot force and 10kpa vacuum void, and analyze the use of rigid presser foot and PU presser foot. As shown in Figure 5, the upper and lower curves respectively indicate the numerical displacement curve of the "drill point" under the steel presser foot and the PU presser foot.

Our Advantages:

Because of our ability to listen, communicate, and react, thousands of loyal customers choose our PCB services over the competition. You can trust Kunshan Sochi to provide you with transparent pricing, nice quality, unparalleled customer service, and on-time shipping. We are committed to your total satisfaction, and if there are any issues, we will make it right!

Payment:
We usually accept 100%TT in advance,Western Union, Paypal,others could be negotiated.

Option A: Standard solid wooden case with plastic wrap
Option B: According to cutomers' requirements

How to make an order?

Client offer “Type of machine used” or “ item picture”.

2. Client makes 100% TT in advance after receiving our PI
3. Production or prepare from our stocks
4. Arrange shipment
5. Supplier arranges necessary documents and send copy of these documents
6. Sent Tracking # to buyers for confirmation.

7. Buyers collected the goods
