| Place of Origin: | China |
|---|---|
| Brand Name: | ISOCHI |
| Model Number: | ER16 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement |
| Delivery Time: | 2 work days |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 300 Piece/Pieces per Week |
| Name: | ER16 Collet/chuck | Application: | BTF Routing Machine |
|---|---|---|---|
| Inner Diameter: | 3.175mm | Precision: | 0.005/0.008/0.015mm Available |
| Diameter: | 17mm | Material: | Stainless Steel |
| Height: | 27.5mm | Hardness: | 44-48HRC |
| High Light: | high precision collet,cnc router collet |
||

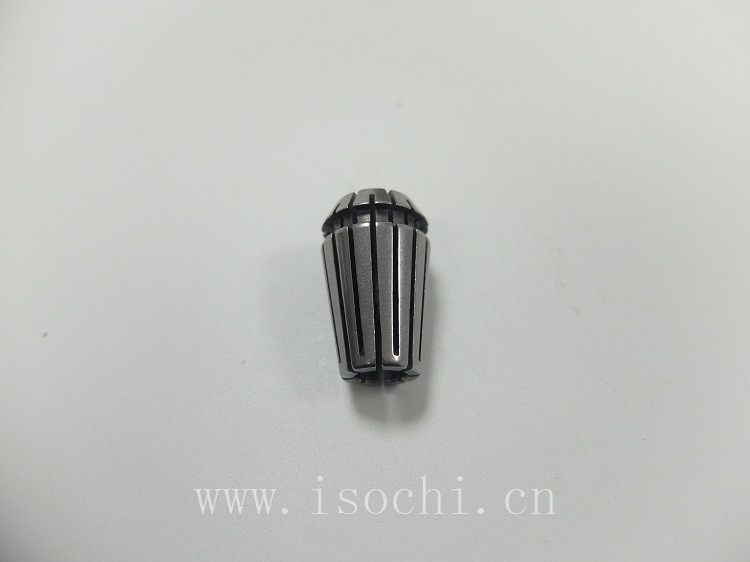

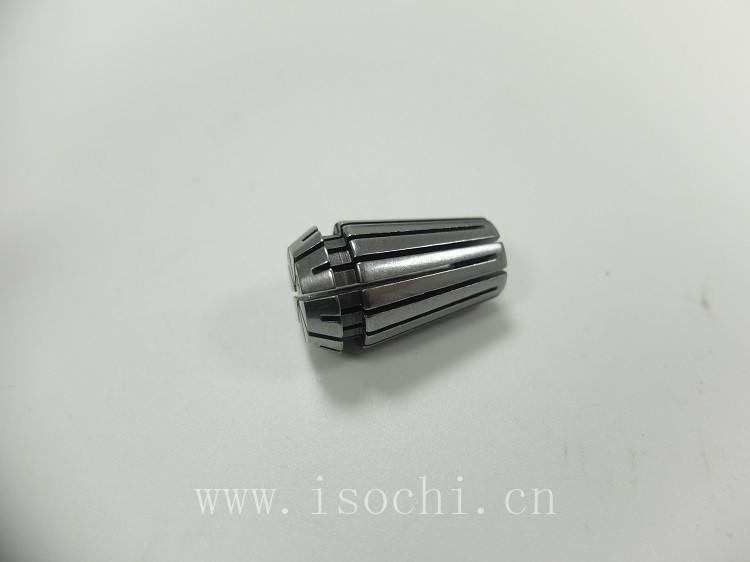

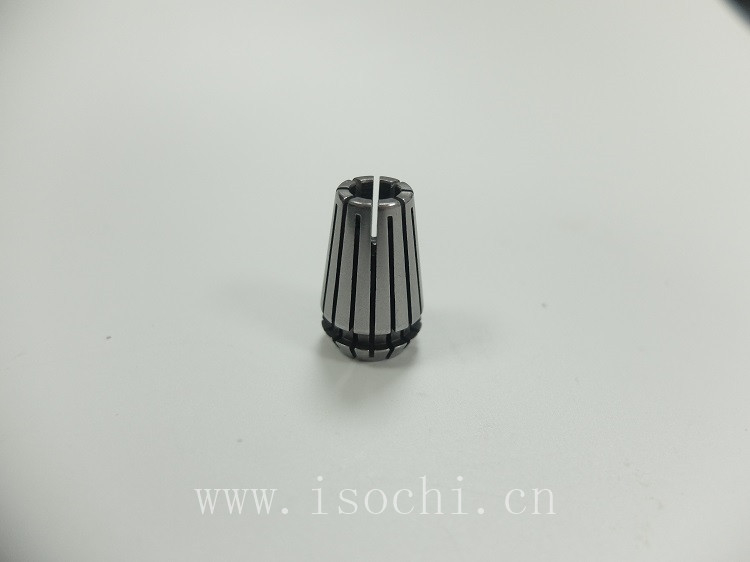

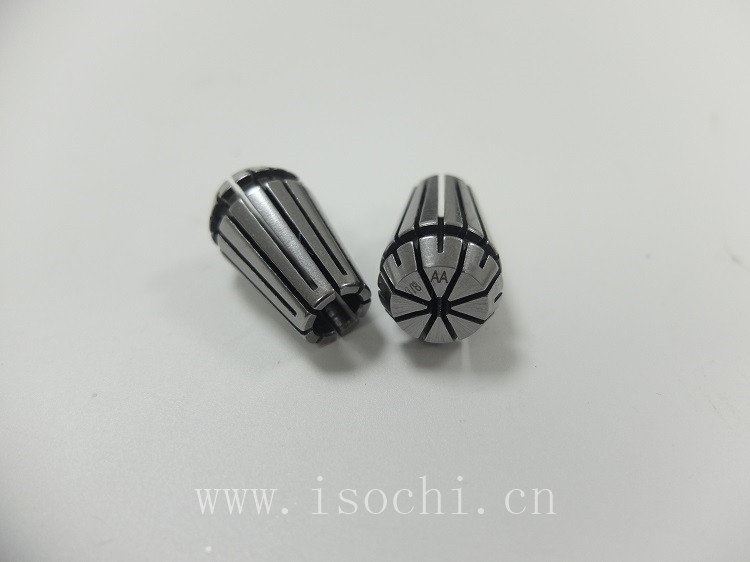

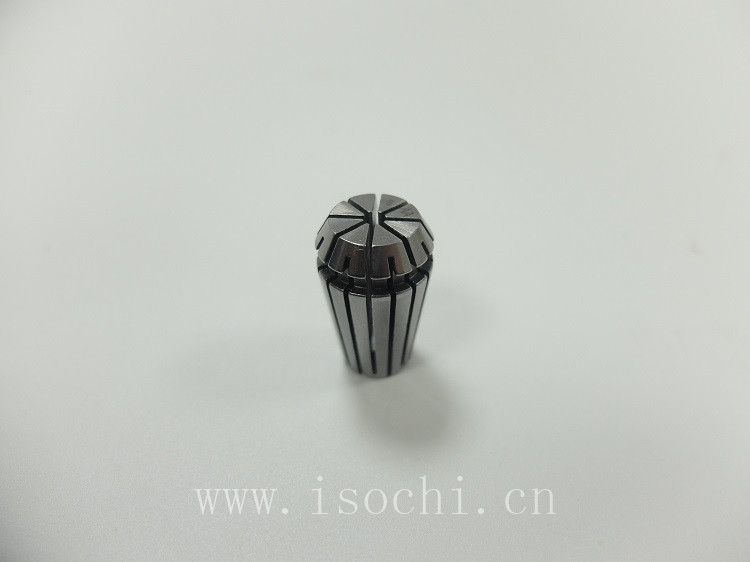

OEM Spindle Collet ER16 Height 27.5mm Diameter 17mm Elastic Clamping Router Chuck
Specifications:
| Item Name: | ER16 Router Collet/chuck |
| Application: | CNC PCB BTF Machine/Engraving Machine |
| Hardness: | 44-48HRC |
| Height: | 27.5mm |
| Color: | Sliver |
| MOQ: | 10 PCS |
| Brand: | ISOCHI |
ISOCHI collet advantages:
The chuck is light weight, fast in acceleration, little affected by centrifugal force, and high in concentricity. It can be exchanged quickly when changing parts. Suitable workpiece size range is limited. Long axial dimension is more suitable for small parts. More suitable for workpieces with uniform diameter and size. Throughout the production process, the collet can significantly save processing time.
Reasons for stainless steel material:
1. Impact and fatigue resistance
2. Corrosion resistance
3. Polishing performance
4. Heat resistance
Service life
Please refer to the replacement standard of Westwind, the warranty period of ISOCHI is 2 months.
More pictures:
About packaging:
Shock-proof decompression bubbles, all-round sealed box, exquisite product packaging, reduce the damage of the product in transportation, please rest assured to buy.
About after sales:
If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.
