| Place of Origin: | China |
|---|---|
| Brand Name: | ISOCHI |
| Certification: | ISO |
| Model Number: | CR2000 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | box + carton |
| Delivery Time: | within 3 days |
| Payment Terms: | T/T,Western Union, ,Paypal |
| Supply Ability: | 1000 PCS/month |
| Item Name: | Spindle Collet | Modle No.: | CR2000 |
|---|---|---|---|
| Application Machine: | Excellon Router Machine | Application Spindle: | QD 420/480/820/880 |
| Inner Diameter: | 1.5mm | Dimension: | Standard |
| Precision: | High Precision | Color: | Silver |
| Stocks: | Rich | OEM: | Yes |
| MOQ: | Negotiable | Delivery Time: | Within 3 Days |
| High Light: | CR2000 High Precision Collet,Standard High Precision Collet,CNC Machine Spindle Collet |
||

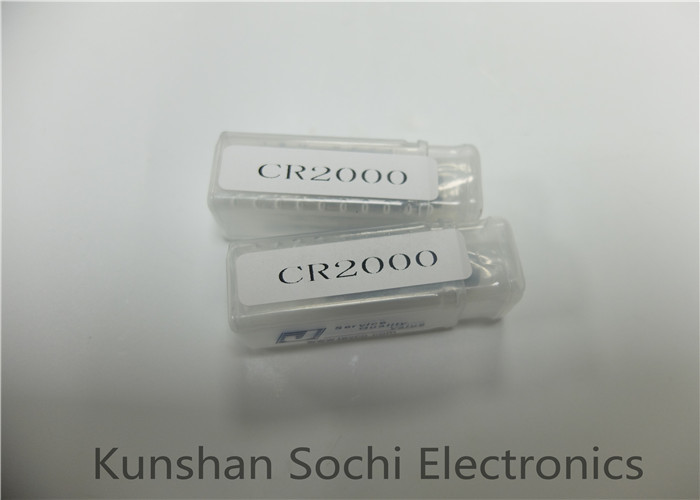

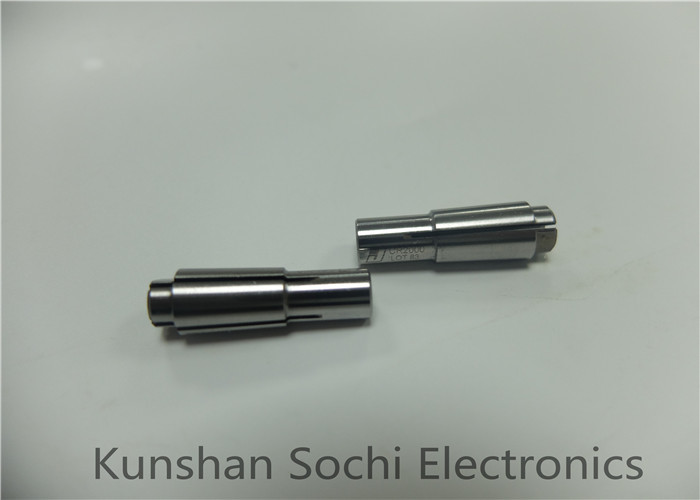

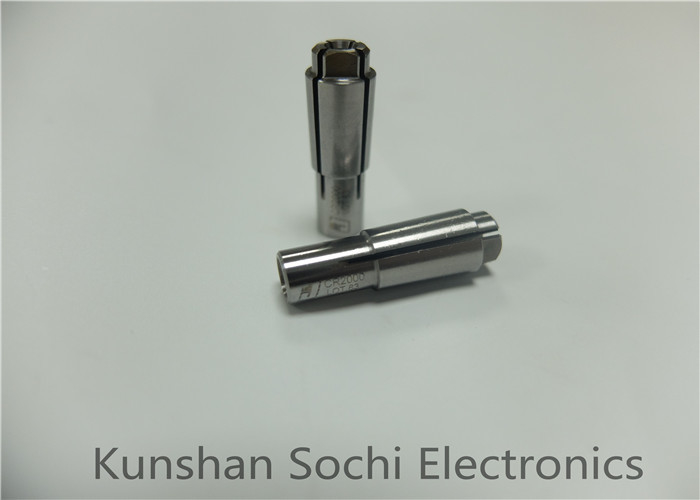

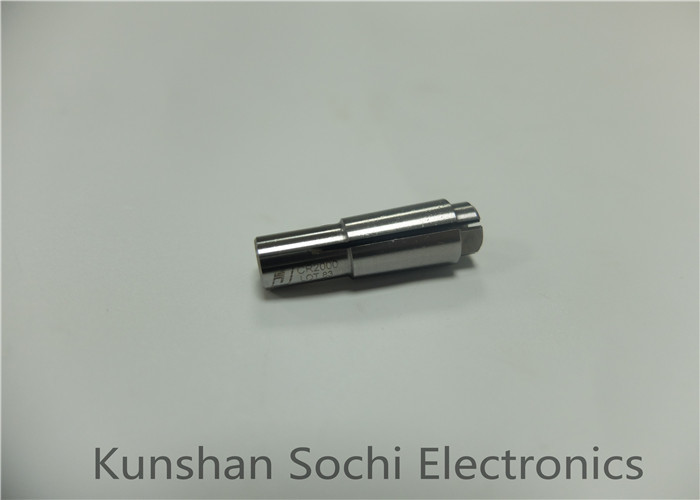

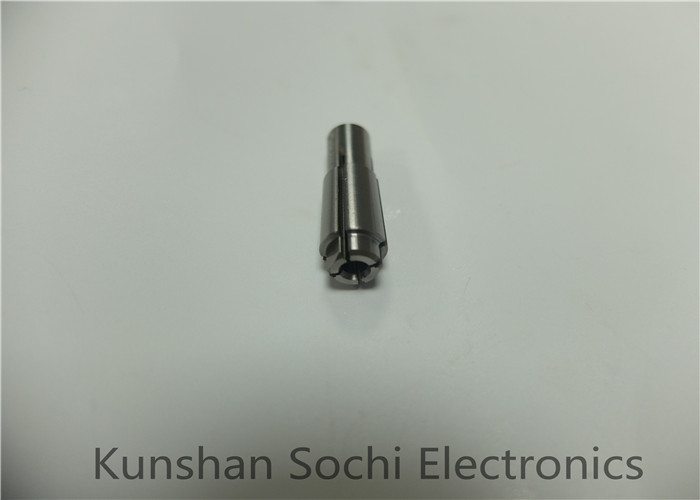

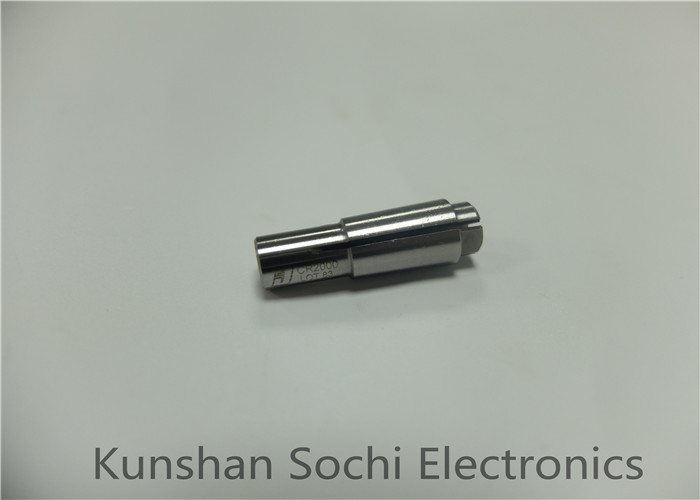

High Precision Collet CR2000 Spindle Parts for CNC Machine Spindle QD820 Excellon
| Item Name: | Router collet CR2000 |
| Color: | Sliver |
| MOQ: | Negotiable |
| Payment terms: | Western Union, T/T,Paypal |
| Ranout | 0.005mm/0.008mm/0.015mm |
| Size: | standard |
| Customized: | Accept |
| Material: | Stainless Steel |
| Brand: | ISOCHI |
What is collet?
Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.
We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using ISOCHI collets will enhance the performance of your spindle and extend their working life.
High Precision collet advantages:
The chuck is light weight, fast in acceleration, little affected by centrifugal force, and high in concentricity. It can be exchanged quickly when changing parts. Suitable workpiece size range is limited. Long axial dimension is more suitable for small parts. More suitable for workpieces with uniform diameter and size. Throughout the production process, the collet can significantly save processing time.
Collet Maintenance:
Collet Maintenance - How Often?
It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.
ISOCHI suggest the following maintenance intervals:-
Removable collets every 100 operating hours
Bonded collets every 24 operating hours
Specifications:
|
Collet list and application spindle |
||
| Model | PN | Application other Spindle |
| D1331-17 | 17593;17809;20924 | 1531-01 ,02 ,04 ,06 ,09 , |
| 1331-01 ,02 ,03 ,07 ,08 ,09 ,10 , 13 | ||
| D1331-17 ,19 ,20 ,21 ,24 ,27 ,28 ,38 | ||
| D1331-26 | 38431;34381 | D1404 ,D1502 ,D1686-01 ,02 ,03 ,04 |
| 1331-25 ,26 ,29 ,31 | ||
| D1331-36 | 38730 | D1331-36 |
| D1331-41 | 37462 | 1331-08,30,32,41,42,44,D1201 |
| 1531-08 ,SM170 , MCT150 ,160 ,170 | ||
| D1331-47 | 41928 | 1331-22 ,1331-47 |
| D1331-49 | 41611 | 1331-49 ,48 ,51 |
| D1686 | 40374 | D1686-10 ,11 ,12 ,13 ,15 ,16 ,18 ,19 ,23 |
| D1769 | 41611 | 1769-06 ,10 |
| D1787 | D1787-01 ,D1787-07 | |
| D1822-01 | D1822-09 | |
| M320-24 | 11257 ; 08085A1 | D1519-01 , M320-01 ,03 ,05 ,07 ,10 ,11 ,16 ,17 |
| M320-18, 19 , 20 ,22 ,23 ,27 ,28 ,29 ,30 ,36 ,47 ,52 | ||
| H920E1 | H920E1 | |
| ABWR80 | 17508 ; 216844-10 , | 1251-03,ABWR80,M320-60,ABW80 |
| ABW125 | 41844;414741-01 | D1199-06,10,ABW125,ABW-170,D1473-07 |
| SC-53 | 53533;033503 | SC-53 |
| SC-63 | 63503 | SC-63 |
| SC-3163 | 263508 ; 263506; 263504 | SC-3263,HB60B,61B,HB60D,RA-60,KL-60B |
| W-62 | 40508518 | W-62 |
| W-69 | 230505 | W-69 |
| HB50B | 230504 | HB50 |
| More than above models can offered please contact us for details. | ||
Stainless steel refers to steel that is resistant to corrosion by weakly corrosive media such as air, steam, and water, and chemically corrosive media such as acid, alkali, and salt. It is also called stainless acid-resistant steel. In practical applications, steel that is resistant to corrosion by weakly corrosive media is often referred to as stainless steel. Stainless steel is an extremely thin, strong and stable chromium-rich oxide film (protective film) formed on its surface. Prevent oxygen atoms from infiltrating and continuing to oxidize, and obtain rust resistance.
Advatages for stainless steel material:
1.Impact and fatigue resistance
2.Corrosion resistance
3.Polishing performance
4.Heat resistance
About delivery:
Common products are delivered within 3 days and will be shipped in the order they are ordered. Negotiable if urgent.
About packaging:
Shock-proof decompression bubbles, all-round sealed box, exquisite product packaging, reduce the damage of the product in transportation, please rest assured to buy.
About after sales:
If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.
