| Place of Origin: | China |
|---|---|
| Brand Name: | ISOCHI |
| Certification: | ISO |
| Model Number: | Schmoll Manipulator Collet |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement |
| Delivery Time: | 2 work days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | 300 Piece/Pieces per Week |
| Product Name: | Manipulator Collet | Application: | CNC PCB Schmoll Drilling Machine |
|---|---|---|---|
| Precision: | 1/8" | Holding Range: | 2.5mm/0.98" |
| Dynamic Ranout: | 9~13μm | Stastic Ranout: | 2um |
| Material: | Stainless Steel | Color: | Silver |
| High Light: | PCB Schmoll Drilling Machine Collet,PCB Manipulator Collet,2um Manipulator Collet |
||
Manipulator Collet 6 Jaws Chuck for PCB Schmoll Drilling Machine
Specifications of Manipulator Collet:
| Material | Stainless Steel |
| Color | Silver |
| Precision | 1/8" |
| Inner Dameter | 2.5mm/0.98" |
| Total Length | 28.5mm/1.12" |
| Dynamic ranout | 9~13μm |
| Stastic ranout | 2um |
| Customized | Yes |
| Condition | New Collet |
| Application | CNC PCB Excellon Routing Machine/420,480,820,880 Spindle |
What is collet?
Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.
We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet.
Using ISOCHI collets will enhance the performance of your spindle and extend their working life.
Collet material-stainless steel:
Stainless steel refers to steel that is resistant to corrosion by weakly corrosive media such as air, steam, and water, and chemically corrosive media such as acid, alkali, and salt. It is also called stainless acid-resistant steel. In practical applications, steel that is resistant to corrosion by weakly corrosive media is often referred to as stainless steel. Stainless steel is an extremely thin, strong and stable chromium-rich oxide film (protective film) formed on its surface. Prevent oxygen atoms from infiltrating and continuing to oxidize, and obtain rust resistance.
Reasons for stainless steel material:
1.Impact and fatigue resistance
2.Corrosion resistance
3.Polishing performance
4.Heat resistance
ISOCHI collet advantages:
The chuck is light weight, fast in acceleration, little affected by centrifugal force, and high in concentricity. It can be exchanged quickly when changing parts. Suitable workpiece size range is limited. Long axial dimension is more suitable for small parts. More suitable for workpieces with uniform diameter and size. Throughout the production process, the collet can significantly save processing time.
How to ensure quality?
All products of Sochi Electronics have gone through 5 inspection procedures, namely: raw material inspection-semi-finished product inspection-finished product inspection-storage inspection-pre-shipment inspection to ensure our shipping standards
About packaging:
Shock-proof decompression bubbles, all-round sealed box, exquisite product packaging, reduce the damage of the product in transportation, please rest assured to buy.
About after sales:
If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.

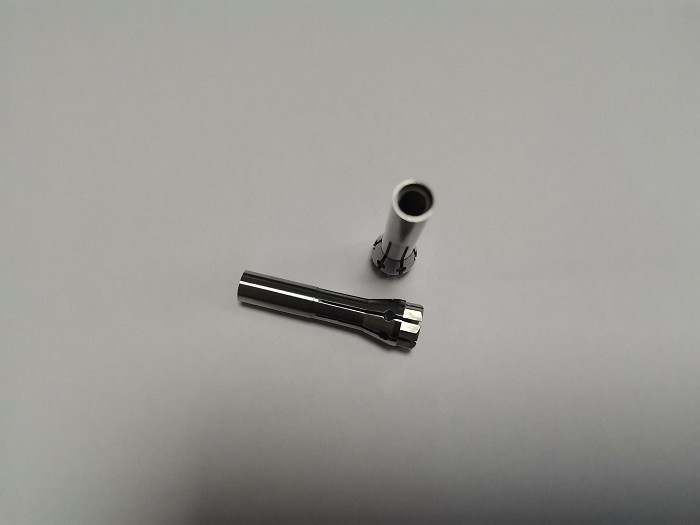

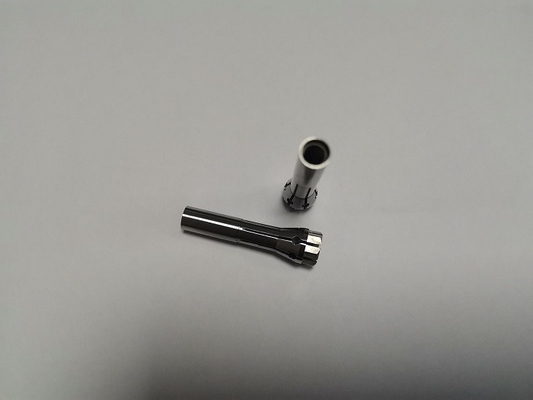

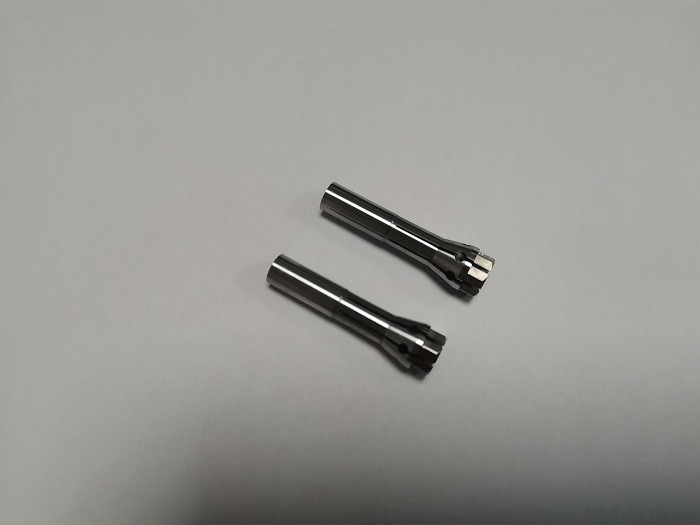

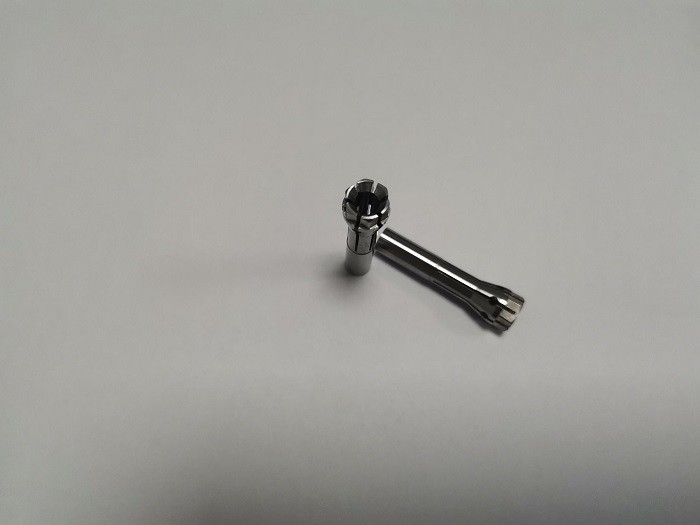

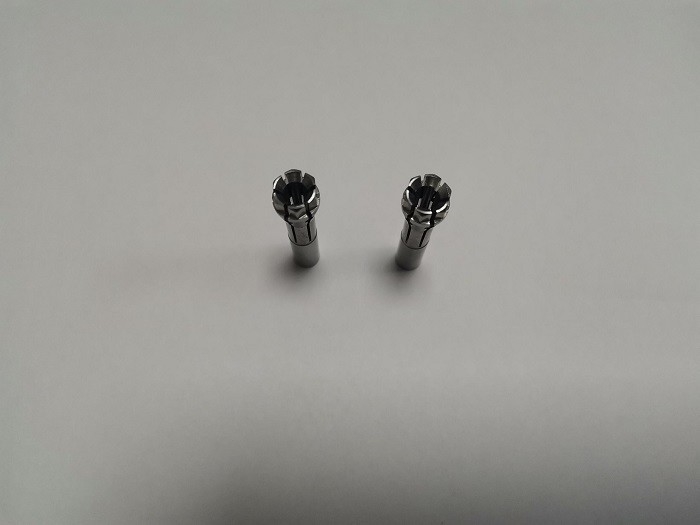

More pictures of Manipulator Collet:
