HCO Series Ultrasonic Air Flow Oxygen Concentration Sensor For CNC Medical Machine

Basic Information
Place of Origin: China
Brand Name: ISOCHI
Certification: ISO
Model Number: HCO
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement
Delivery Time: 4 days
Payment Terms: T/T, Western Union,Paypel
Supply Ability: 190 Pieces per Week
Detail Information
Product Name:: HCO Oxygen Sensor Application:: Oxygen/air Conditioning & Refrigeration Equipment
Application Areas:: Aerospace, Automotive, Medical, Refrigeration And Other Fields Operating Temperature:: ―40℃~125℃
Accuracy:: ±0.5%FS(BFSL),±0.25%FS(BFSL) Dielectric Contact Material:: 17-4PH/316L
Shell Material:: 304 Stainless Steel Min Measuring Range:: 0-350KPa
Max Measuring Range:: 0-70MPa Insulation Resistance:: >100M/250VDC
High Light:

HCO Oxygen Concentration Sensor

,

Ultrasonic O2 Concentration Sensor

,

CNC Machine O2 Concentration Sensor


Product Description

HCO Series Ultrasonic Air Flow Oxygen Concentration Sensor for CNC Medical Machine



Descriptions of PC Series Universal Pressure Sensor:



Brand Name: ISOCHI Place Of Origin: China

Model:

HCO Series Color: Black
Lead Time: 4 Days After Payment Application: Oxygen/air conditioning & refrigeration equipment



Characteristics & Application:

  • Measurement by ultrasonic principle
  • High precision/stable measurement
  • Small volume/quick response
  • Full range temperature compensation
  • Low cost
  • Long service life

Product description:

HCO series oxygen concentration sensor is an ideal economic and practical oxygen concentration detection module based on ultrasonic principle. It has the characteristics of high precision,low cost,high reliability,easy to use, and also has the function of concentration/flow/temperature detection. It is widely used in the fields of agriculture/ industry/environmental detection, especially in the oxygen generator industry.



Specifications:

Concentration measurement range 21%-95.6%(Other ranges can be customized)
Concentration resolution 0.1%
Concentration detection accuracy ±1.5%FS@(5~55℃)(1% Customizable)
Flow detection range 0-10L/min
Flow detection accuracy ±0.2 L/min@(5~55℃)
Digital output USART
Working voltage 5V or 12V(Optional)
Communication method Blind or inquiry (default blind)
Detection period 500ms
Oxygen No corrosion / No condensate
Working temperature 5~55℃(Other temperature ranges can be customized)
Storage temperature -40~85℃
Relative temperature 0~99%(Non condensation)
Working current <30mA
Intake direction Follow the arrow

HCO Series Ultrasonic Air Flow Oxygen Concentration Sensor For CNC Medical Machine 0

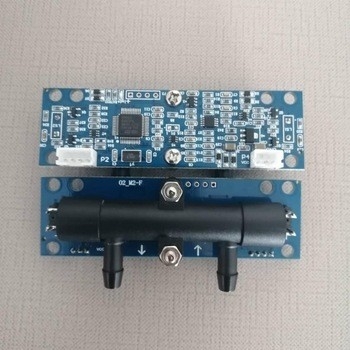

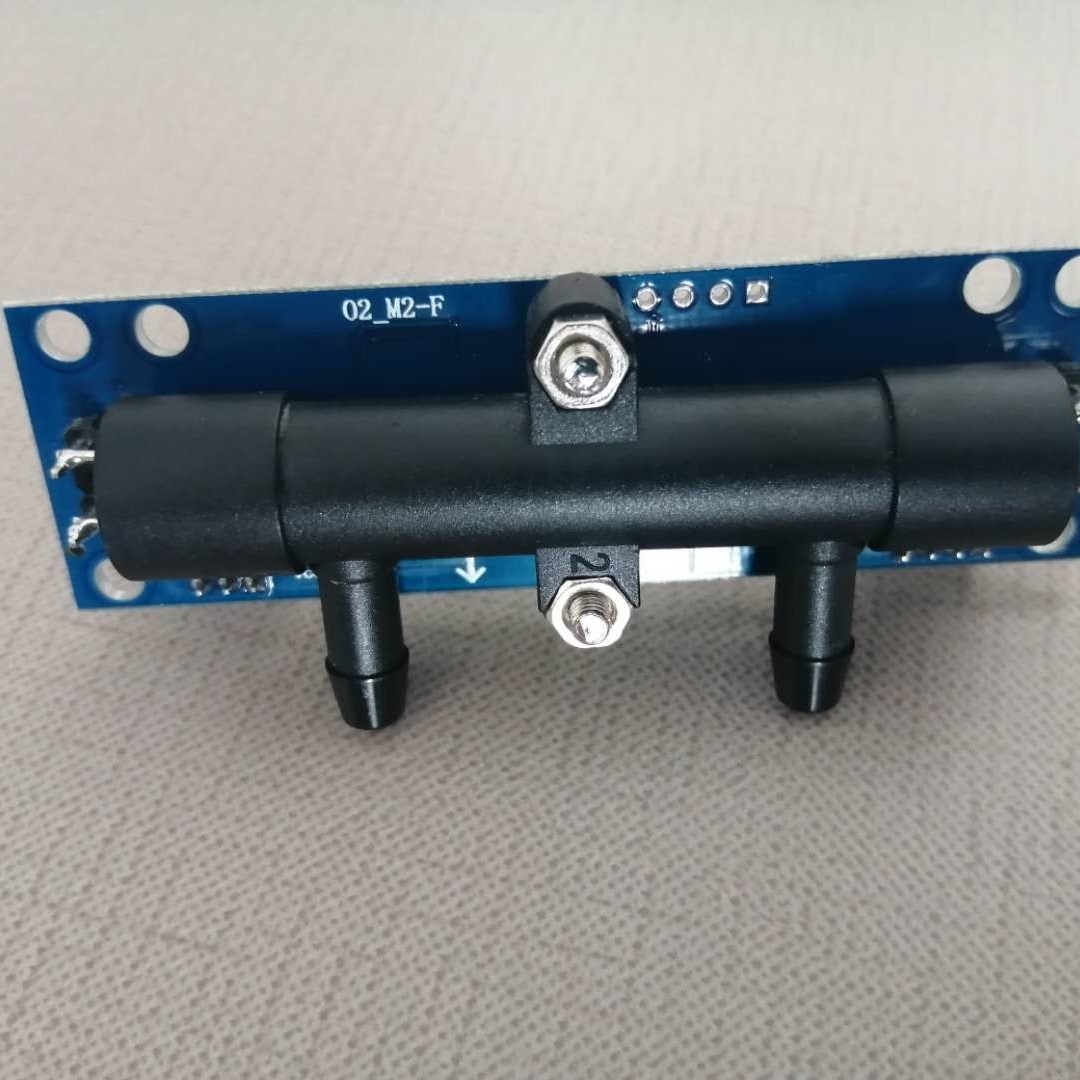

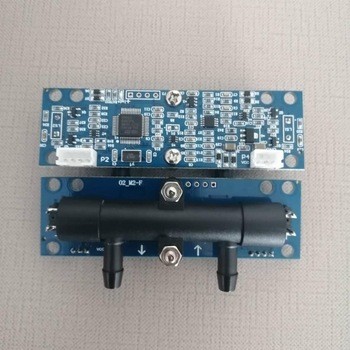

Product show of HCO Oxygen Sensor:

HCO Series Ultrasonic Air Flow Oxygen Concentration Sensor For CNC Medical Machine 1
HCO Series Ultrasonic Air Flow Oxygen Concentration Sensor For CNC Medical Machine 2


About delivery:


Common products are delivered within 4 days and will be shipped in the order they are ordered. Negotiable if urgent.



About after sales:


If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.
