High Precision Small Hole Pressure Foot Assembly Disk Insert For PCB CNC Taliang Drilling Machine

Basic Information
Place of Origin: Jiangsu
Brand Name: ISOCHI
Model Number: Taliang Pressure Foot Disk Insert yellow
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement
Delivery Time: 2 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 600 Piece/Pieces per Week
Detail Information
Brand Name:: ISOCHI Place Of Origin:: Jiangsu,China
Material:: Plastic Customized:: Yes
Lead Time:: 2 Days After Payment Application:: Drilling Machine

Product Description

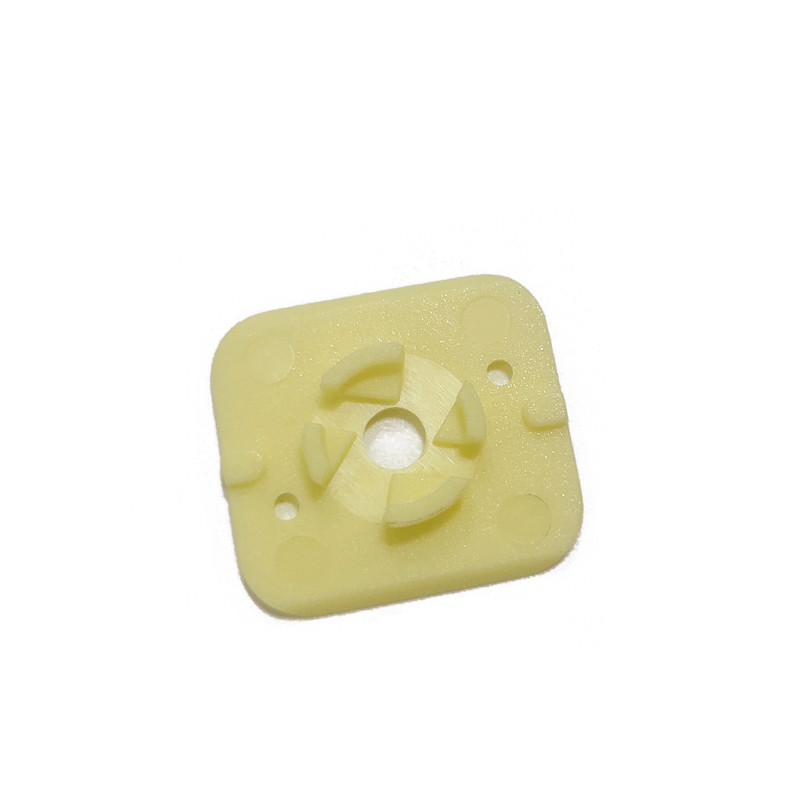

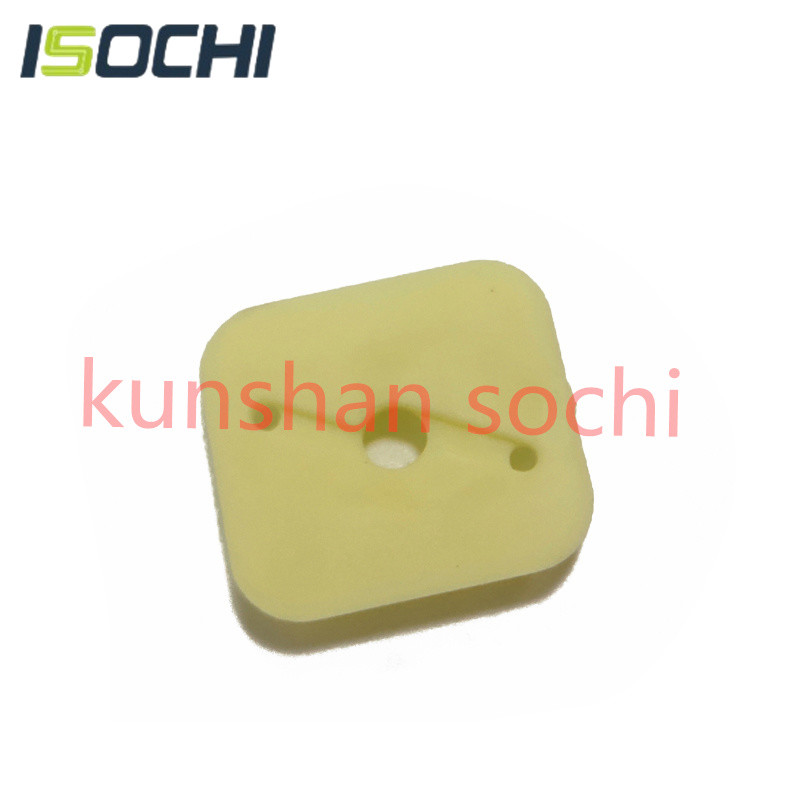

High Precision Small Hole Pressure Foot Assembly Disk Insert For PCB CNC Taliang Drilling Machine



Specifications:

Brand Name: ISOCHI
Material: Plastic
Lead Time:  2 Days After Payment
Place Of Origin: Jiangsu,China
Customized: Available
Application: CNC PCB Taiwan Taliang Drilling Machine

Discribtion:

Pressure Foot is the irreplaceable part on PCB molding machine. It is placed on pneumatic rod to link with brush

parts for cleaning the PCBA that prevents PCBA from been corroded and oxdized.

Pressure foot gasket worked as the seal ring to prevent the inner component from corrosion of dust and oil .

With this part , it can last the machine 's life and make the machine working more normally.

We could offer all kinds of pressure foot for other machines.

Why us?

1. The raw materials of our products are with nice quality, and our products have good physical and chemical properties, wear resistance and long service life

2. We have professional technical designers, engaged in CNC lathe for more than 10 years.

3. Constantly strive for the perfection of quality, the surface treatment of the product is meticulous, no burr, and strictly control every details.

4. Strict confidentiality, professional service, reasonable price, excellent quality, exquisite workmanship, timely delivery.



Form and material of pressure foot:

The main function of the pressure foot is to compact the workpiece system. Through its slotted ventilation structure, it provides air supplement for the vacuum system, forms a better convection system, and has a larger buffer effect. Different brands of mechanical drilling design manufacturers based on different considerations, the material of the pressure foot is metal materials and non-metal materials. Metal materials are mainly stainless steel (usually SUS304) and brass materials (C3604BD, equivalent to HPb59-1). Non-metal materials are mainly PA66, PA6, POM and PU. The main considerations for the use of metal materials are relatively high hardness, wear resistance, and long service life (normally 8-10 months can be used); the disadvantage is that the buffer effect is not obvious, and it has not stabilized for a long time. The use of industrial rubber materials (PU, PA6 PA66) mainly considers good vibration absorption characteristics. For the impact process, it can achieve a significant vibration absorption effect, and the amplitude can be reduced in a short time. The disadvantage is that the hardness is relatively low and it is not resistant to wear. Life is short, usually around a week. Using ABAQUS software simulation, adjust the presser foot material, analyze with 100N presser foot force and 10kpa vacuum void, and analyze the use of rigid presser foot and PU presser foot. As shown in Picture 1, the upper and lower curves respectively indicate the numerical displacement curve of the "drill point" under the steel presser foot and the PU presser foot. It can be seen that the presser foot impacts with the presser foot force and oscillates, and the oscillation attenuates regularly within 0.06S; however, the PU presser foot has a significant vibration absorption effect. After the oscillation is initiated, the "drill down point" quickly stabilizes. Stability is reached at about 0.001S. Based on the good vibration absorption performance of industrial rubber, most drilling machine manufacturers currently use industrial rubber pressure feet.

High Precision Small Hole Pressure Foot Assembly Disk Insert For PCB CNC Taliang Drilling Machine 0



Our Service

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Provide English manual or operating video.

4, Free training to help you master your equirement.

More pictures:

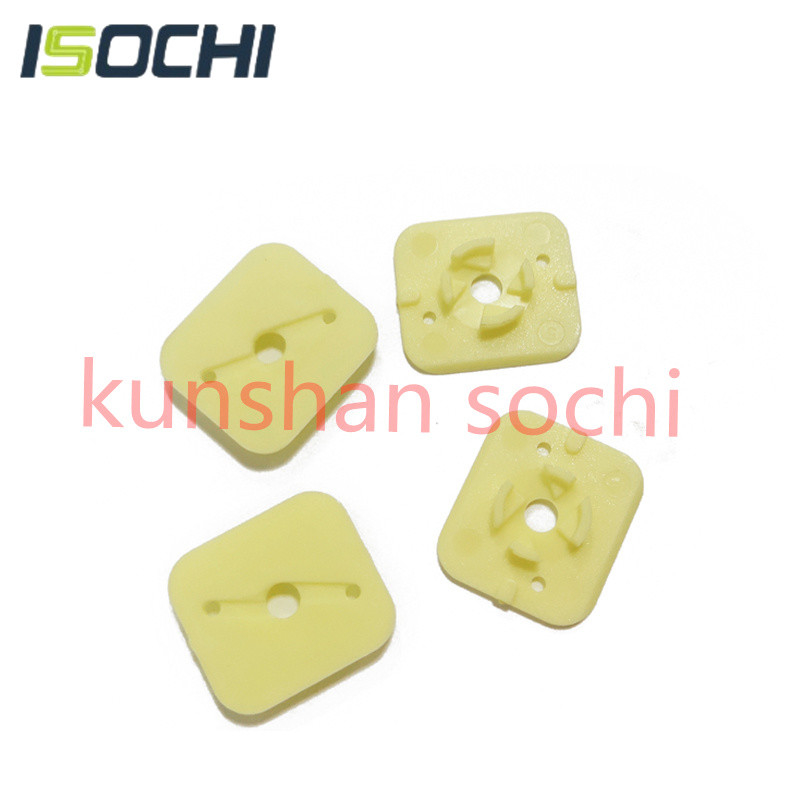

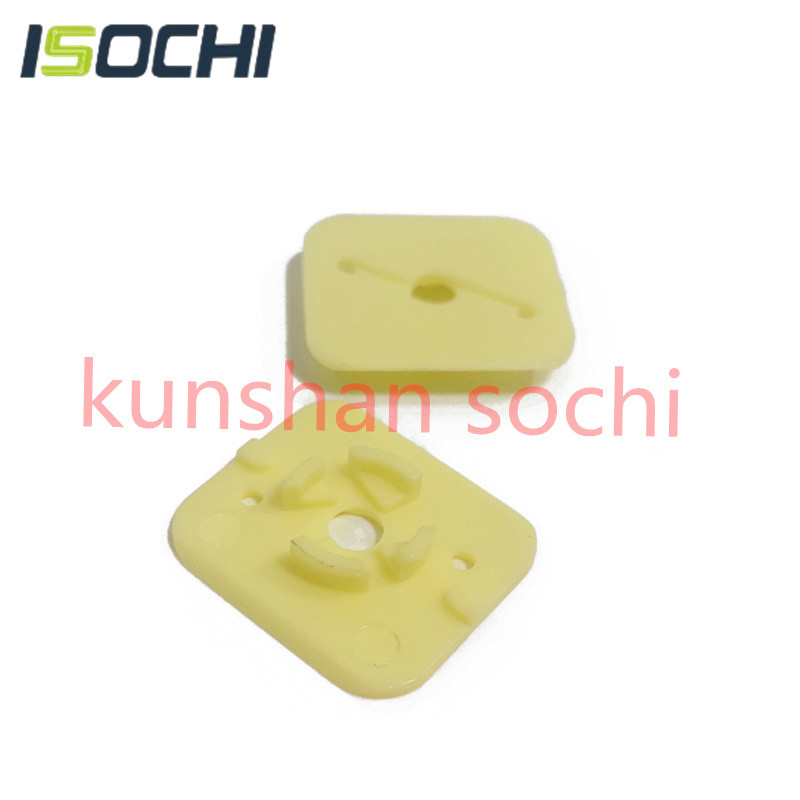

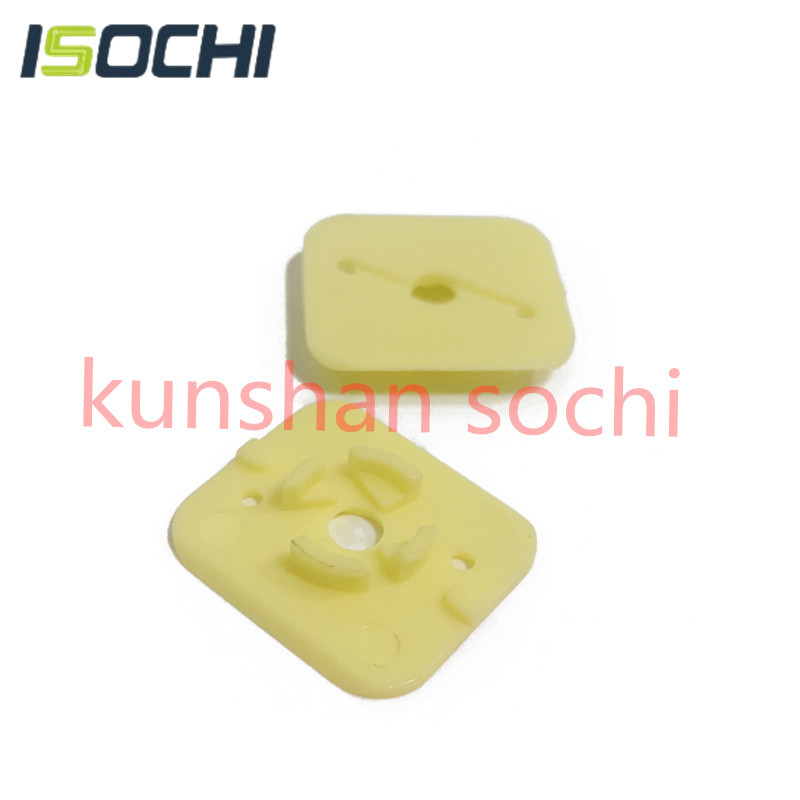

High Precision Small Hole Pressure Foot Assembly Disk Insert For PCB CNC Taliang Drilling Machine 1



About Delivery:

Common standard products are delivered within 3 days and will be shipped in the order they are ordered. Negotiable if urgent

About package:

Shock-proof decompression bubbles, all-round sealed box, exquisite product packaging, reduce the damage of the product in transportation, please rest assured to buy.

About after-sale:

If you have any questions about the product, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.
