High Precision Pressure Foot Assembly New Type For PCB Tongtai Drilling Machine Aluminum Custom Available

Basic Information
Place of Origin: Jiangsu
Brand Name: ISOCHI
Model Number: Tongtai Drilling Machine
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Usually in standard package, Carton packing,can meet custormer's requirement
Delivery Time: 4 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 150 Piece/Pieces per Week
Detail Information
Brand Name:: ISOCHI Place Of Origin:: Jiangsu,China
Material:: Aluminum Customized:: Yes
Lead Time:: 4 Days After Payment Application:: PCB Tongtai Drilling Machine

Product Description

High Precision Pressure Foot Assembly New Type For PCB Tongtai Drilling Machine Aluminum Custom Available


Specifications:



Brand Name: ISOCHI Place Of Origin: Jiangsu,China
Material: Aluminum Customized: Yes
Lead Time: 4 Days After Payment Inspection: 100% Inspection before del
Payment: T/T, Western Union,Paypal Application: PCB TAIWAN Tongtai Drilling Machine





The pressure foot cup is an indispensable device to achieve efficient vacuum suction of the pressure foot and high-quality drilling, and also plays a key role in drilling quality.

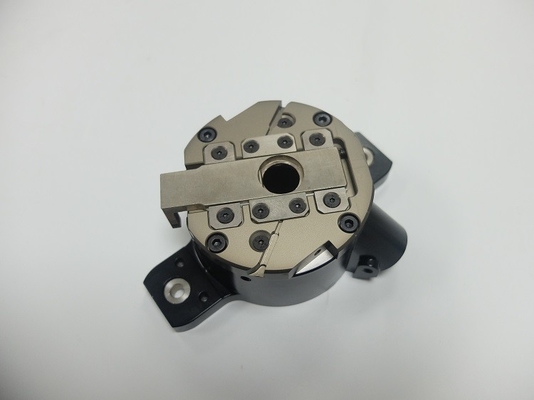

High Precision Pressure Foot Assembly New Type For PCB Tongtai Drilling Machine Aluminum Custom Available 0

Picture 1



Pressure foot assembly:

In the case of the correct selection of the cover plate and the backing plate, the pressure foot assembly consisting of the synchronous cylinder, the chip suction cover and the pressure foot is a key factor affecting the quality of the drilling. In the past when drilling holes with a diameter of 0.5mm or more, under the condition that the CPK (Process Capability Index) ≥ 1.33 on the reverse side of the floor and the hole wall roughness ≤ 25.4μm were used, a fixed chip suction cover and a single-hole pressure foot were usually used. As the drilling hole diameter of printed circuit boards is gradually reduced (currently mainly concentrated at φ0.3mm, most of φ0.1 ~ 0.2mm), the precision of the pressure foot assembly of traditional chip suction hood and single-hole pressure foot configuration in the drilling accuracy And drilling quality are somewhat inadequate, which affects machining accuracy. To this end, a switching foot assembly is designed. The inner diameter of φ8.5mm is responsible for drilling large holes, and the inner diameter of φ2.5mm is responsible for drilling small holes. The open area between the inner diameter of the pressure foot and the drill is more obvious than that under a single pressure foot. Reduced, PCB workpiece system is pressed more firmly and leveled. The most common presser foot switch on the market. It is mainly divided into two design concepts. One design concept is the design concept of the integration of the large and small pressure feet of the German Schmoll company. The large and small pressure feet of this structure are on the same flat sliding plate, as shown in Picture 2. The air cylinder is directly connected to the slide plate drive, or the steel wire rope is used to drive the air cylinder. The advantage is that the structure is relatively simple, the machining is easier to implement, and the process is easier to maintain. The disadvantage is that the pressure foot is in the small hole position, and only three-quarters of the pressure foot around the drill bit fits the workpiece tightly. A quarter of the pressure foot must leave a channel for the pressure foot size hole switch, and can only rely on the farther positionable pressure foot to press the workpiece system. Another design concept is the design concept of large and small holes separated by Hitachi, Japan, as shown in Picture 3. The large and small pressure feet of this structure are fixed in an arc-shaped pressure foot seat, so that the pressure feet can switch between large and small holes. The advantage is that the pressure foot is in the small hole position, and the periphery of the drill bit can be tightly fitted; the disadvantage is that the structure is complicated, the arc-shaped mating surface is difficult to process, and it is difficult to maintain during use. The figure illustrates the effect of the size of the presser foot and the negative vacuum pressure on the aluminum sheet during the drilling process. It can be clearly seen from the figure that the excessively large presser foot is uniform during drilling due to the effect of negative vacuum pressure. The aluminum sheet is sucked up, causing protrusions, and it is easy to cause large deviations in the drilling. The use of independent small presser feet can reduce the adsorption of the aluminum sheet by the vacuum pressure due to the concentrated distribution of the pressure range, and improve the drilling accuracy. . The key point of the dust extraction hood design is efficient dust extraction efficiency. The results of the CFD analysis of COMSOL are shown in Picture 4. The flow lines in the dust extraction hood are mainly tangent to the outer diameter of the spiral, so as to maximize the suction cross-sectional area. The vertical position of the outlet should be as close to the bottom of the suction hood as possible, which is more conducive to the "washing hood" circulation flow, and at the same time to avoid affecting the inflow of the gap in the outer ring of the spindle and being blocked by the vertical moving spindle. By using the smallest possible gap between the dust suction hood and the main shaft, the tangent of the center line of the outlet and the outer diameter of the dust spiral line, and the lightest weight design possible, the dust suction hood can be efficiently vacuumed while taking care to prevent electrostatic interference.

High Precision Pressure Foot Assembly New Type For PCB Tongtai Drilling Machine Aluminum Custom Available 1

Picture 2

High Precision Pressure Foot Assembly New Type For PCB Tongtai Drilling Machine Aluminum Custom Available 2

Picture 3

High Precision Pressure Foot Assembly New Type For PCB Tongtai Drilling Machine Aluminum Custom Available 3

Picture 4




PCB numerical control drilling machine as an important equipment in printed circuit board processing, its processing quality has a great impact on the performance of electronic products. Its suck

The combined structure of chip cover and pressure foot is one of the main factors affecting the quality of hole processing. Excellent design and combination of the combined structure of the suction hood and the pressure foot

Reasonable pressure foot pressure and vacuum suction negative pressure settings are the key to ensure high quality drilling of printed circuit boards. Under most operating conditions, the design of the gap between the chip suction hood and the spindle as small as possible, the tangent of the exit center vector line and the outer diameter of the dust spiral line, and the lightest possible mass design, combined with industrial rubber with excellent vibration absorption performance The pressure foot, the pressure foot pressure is set to about 100 N and the vacuum vacuum negative pressure is about 10 kPa, which can achieve efficient dust extraction and high-quality drilling of the dust cover.

Raw material selection:

Aluminum

(1) Light weight, good rigidity and high strength

(2) Good fire resistance

(3) Easy to recycle, pollution-free, environmentally friendly.

Demarcated customized service process:

Provide drawings / samples and quantity - quote- contract- produce- surface treatment - precision measurement - finished product packaging - pre shipment inspection - shipment

Why us?

1. The raw materials of our products are with nice quality, and our products have good physical and chemical properties, wear resistance and long service life

2. We have professional technical designers, engaged in CNC lathe for more than 10 years.

3. Constantly strive for the perfection of quality, the surface treatment of the product is meticulous, no burr, and strictly control every details.

4. Strict confidentiality, professional service, reasonable price, excellent quality, exquisite workmanship, timely delivery.

More pictures:

High Precision Pressure Foot Assembly New Type For PCB Tongtai Drilling Machine Aluminum Custom Available 4
