High Precision pressure foot cup for Excellon Drilling Machine

Basic Information
Place of Origin: Jiangsu
Brand Name: ISOCHI
Certification: ISO
Model Number: Anderson Routing Machine
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Usually in standard package, Carton packing,can meet custormer's requirement
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 30 Piece/Pieces per Week
Detail Information
Item Name:: Pressure Foot Cup For PCB AEMG Machine Material:: Iron
Application:: PCB Anderson Machine Customized:: Available
Feature:: Wearable,Glitch-free Sample:: Available
Color:: Black Lead Time:: 2-3 Days After Payment

Product Description

OEM Pressure Foot Cup Iron Casting High Precision For PCB AEMG Routing Machine Wear-resistant

Specifications for AEMG Pressure Foot Cup:


Brand Name: ISOCHI Place Of Origin: Jiangsu,China
Color: Black Customized: Available
Lead Time:  2-3 Days After Payment Inspection: 100% Inspection before del
Payment: T/T, Western Union,Paypal Application: CNC PCB Anderson/AEMG Machine

The pressure foot cup is an indispensable device to achieve efficient vacuum suction of the pressure foot and high-quality drilling, and also plays a key role in drilling quality.

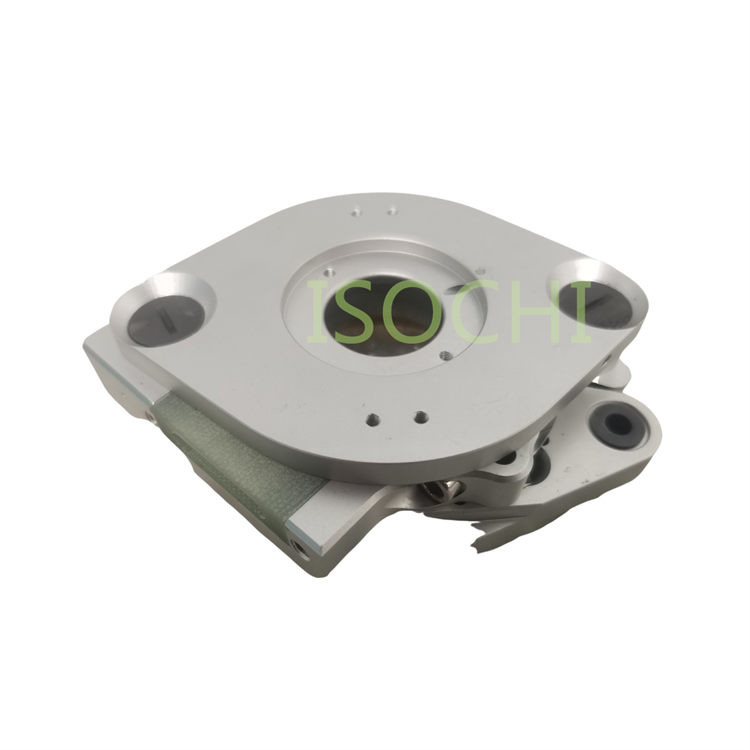

High Precision pressure foot cup  for  Excellon Drilling Machine 0

Picture 1


Form and material of pressure foot:


The main function of the pressure foot is to compact the workpiece system. Through its slotted ventilation structure, it provides air supplement for the vacuum system, forms a better convection system, and has a larger buffer effect. Different brands of mechanical drilling design manufacturers based on different considerations, the material of the pressure foot is metal materials and non-metal materials. Metal materials are mainly stainless steel (usually SUS304) and brass materials (C3604BD, equivalent to HPb59-1). Non-metal materials are mainly PA66, PA6, POM and PU. The main considerations for the use of metal materials are relatively high hardness, wear resistance, and long service life (normally 8-10 months can be used); the disadvantage is that the buffer effect is not obvious, and it has not stabilized for a long time. The use of industrial rubber materials (PU, PA6 PA66) mainly considers good vibration absorption characteristics. For the impact process, it can achieve a significant vibration absorption effect, and the amplitude can be reduced in a short time. The disadvantage is that the hardness is relatively low and it is not resistant to wear. Life is short, usually around a week. Using ABAQUS software simulation, adjust the presser foot material, analyze with 100N presser foot force and 10kpa vacuum void, and analyze the use of rigid presser foot and PU presser foot. As shown in Picture 2, the upper and lower curves respectively indicate the numerical displacement curve of the "drill point" under the steel presser foot and the PU presser foot. It can be seen that the presser foot impacts with the presser foot force and oscillates, and the oscillation attenuates regularly within 0.06S; however, the PU presser foot has a significant vibration absorption effect. After the oscillation is initiated, the "drill down point" quickly stabilizes. Stability is reached at about 0.001S. Based on the good vibration absorption performance of industrial rubber, most drilling machine manufacturers currently use industrial rubber pressure feet.

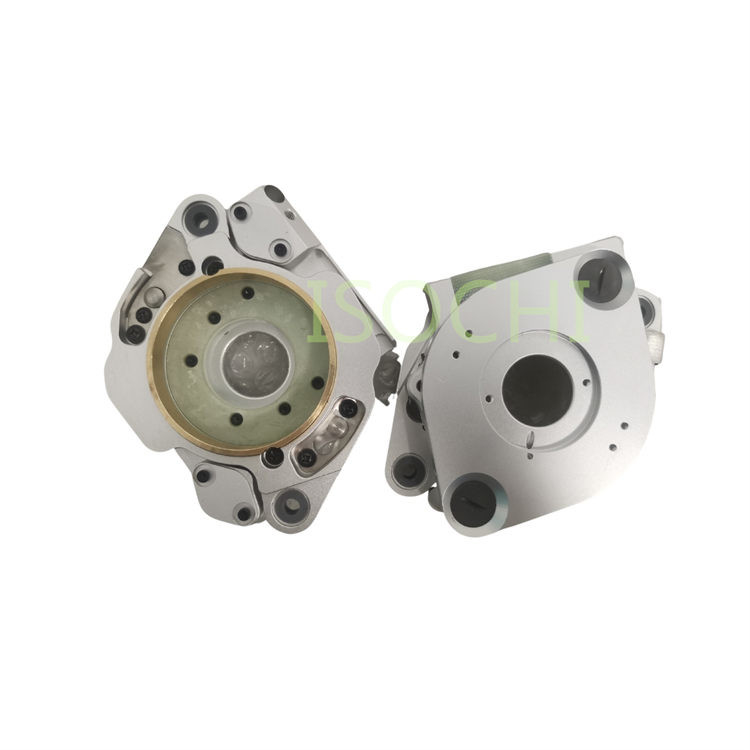

High Precision pressure foot cup  for  Excellon Drilling Machine 1

Picture 2


Why us?


1. The raw materials of our products are with nice quality, and our products have good physical and chemical properties, wear resistance and long service life

2. We have professional technical designers, engaged in CNC lathe for more than 10 years.

3. Constantly strive for the perfection of quality, the surface treatment of the product is meticulous, no burr, and strictly control every details.

4. Strict confidentiality, professional service, reasonable price, excellent quality, exquisite workmanship, timely delivery.


More pictures for AEMG Pressure Foot Cup:

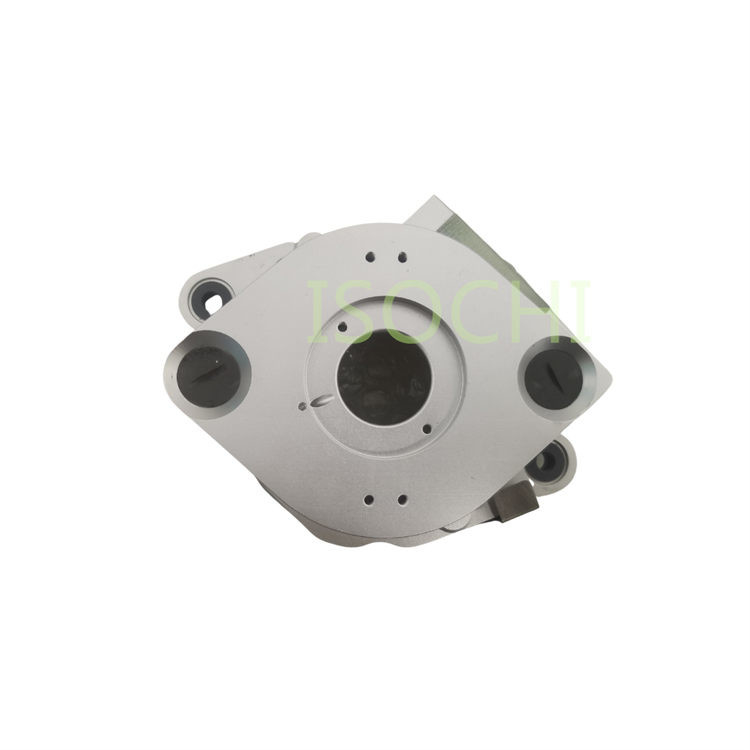

High Precision pressure foot cup  for  Excellon Drilling Machine 2
