Detail Information

Model No.::	ISC118	Machine Beam::	Jinan Natural Granite,the Machine Body Is High Precision,
Machine Dimension::	171021001605mm	X,Y,Z-axis Stroke::	560mm700mm40mm
X,Y-axis Drive::	Imported High-power Servo Motor(Guaranteed Transmission Speed)	Drilling Diameter::	Φ0.2mm-Φ6.35mm
Drilling Accuracy::	±0.004mm	Positioning Accuracy::	±0.004mm
Replicate Positioning Accuracy::	±0.0025mm	Spindle Speed::	160-180krpm ABL/Westwind(Optional)
Max. Drilling Speed::	480-550hole/min	Spindle Cooling Method::	Water Cooling
Tool Change Mode::	Automatic Tool Change	BrokenTool Detection::	Laser Tool Detector
Power Supply::	3PH-AC380V+PE,50/60HZ 15KVA	Machine Weight::	4000kg
Highlight:	pcb drilling equipment , high speed drilling machine

Product Description

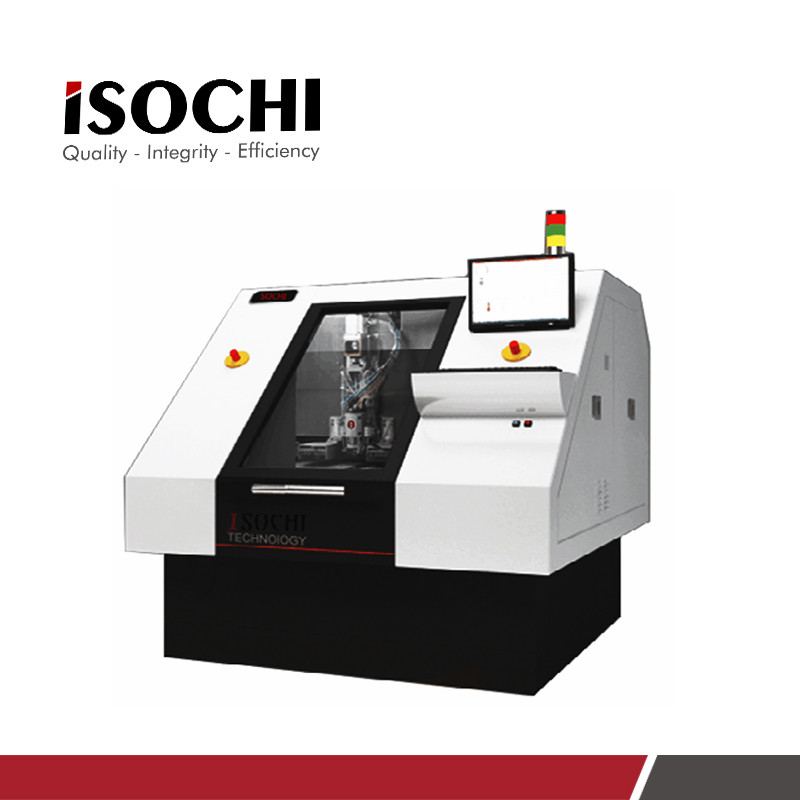

One Head PCB Drilling Machine Servo Motor Westwind Spindle 480 - 550 hole / min

PCB drilling machine is the most important equipment for PCB production.

Working Conditions:

Power Supply:	3PH-AC380V+PE,50/60HZ 15KVA
Temperature:	22±2℃/45%-65%
Noise:	≤75dBA
Temperature:	22±2℃/45%-65%

Product Datas:

Model:	SC118
Spindle Quantity:	1
Machine beam:	Jinan natural granite,the machine body is high precision, less deformation and highly stable
Machine Dimension:	171021001605mm
X,Y,Z-axis stroke:	560mm700mm40mm
Z-axis drive:	Imported servo motor
Feed Rate X,Y-axis:	60m/min
Feed Rate Z-axis:	30m/min
Max. Working Area:	560mm*700mm
Drilling Diameter:	Φ0.2mm-Φ6.35mm
Drilling Accuracy:	±0.025mm
Positioning Accuracy:	±0.004mm
Replicate Positioning Accuracy:	±0.0025mm
Spindle Speed:	160-180krpm ABL/Westwind(Optional)
Spindle cooling method:	Water cooling
Tool Change Mode:	Automatic Tool Change
BrokenTool Detection:	Laser tool detector
Power Supply:	3PH-AC380V+PE,50/60HZ 15KVA
Noise:	≤75dBA
Machine Weight:	4000kg

Notes:

The drilling speed depends on the thickness of the plate, the number of plates and the hole size. The drills on the 2*1.6mm PCB,for 0.3 holes the drilling speed is more than 460 holes/min； 0.5 holes,and the drilling speed is more than 510holes/min.

Our Service:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.
