4 Head PCB Automatic Water Cooling Drilling Machine 180krpm Laser Tool Detector

Basic Information
Place of Origin: China
Brand Name: ISOCHI
Certification: ISO
Model Number: ISC418
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard wooden case or according to customers' requirement
Delivery Time: 20 days
Payment Terms: T/T, , L/C
Supply Ability: 4 Sets per Month
Detail Information
Model No.:: ISC418 Machine Dimension:: 3300*2000*2000mm
X,Y,Z-axis Stroke:: 560mm*700mm*40mm Temperature:: 22±2℃/45%-65%
Power Supply:: 3PH-AC380V+PE,50/60HZ 15KVA Noise:: ≤75dBA
Air Pressure:: 6.5-7.5bar Broken Tool Detection:: Laser Tool Detector
Machine Weight:: 8000kg X,Y-axis Measurement System:: Imported Closed Linear Scale
High Light:

pcb drilling equipment

,

high speed drilling machine


Product Description

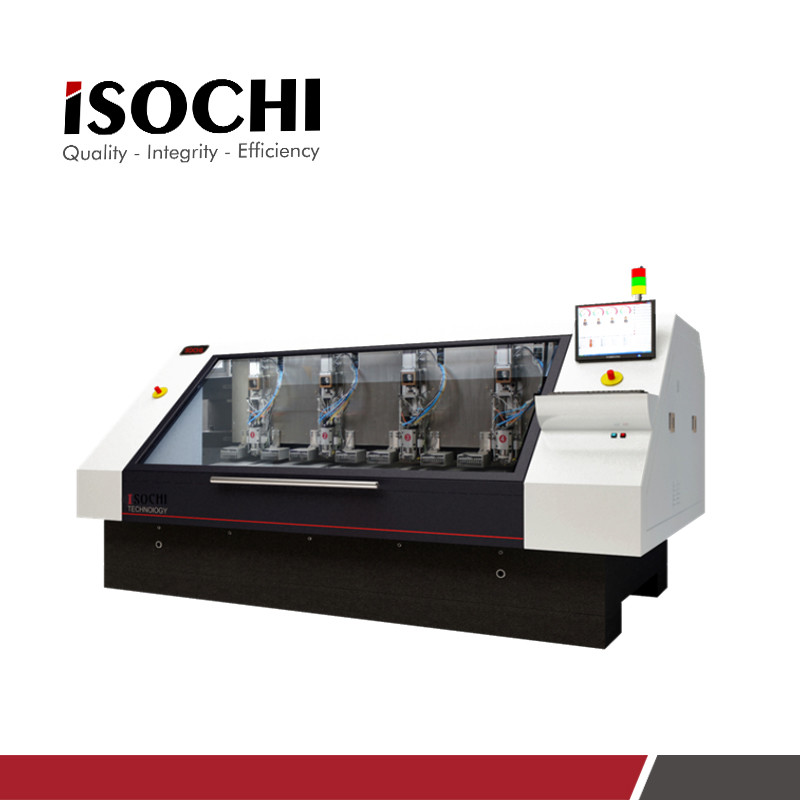

4 Head PCB Automatic Water Cooling Drilling Machine 180krpm Laser Tool Detector



Working Conditions:



Power Supply: 3PH-AC380V+PE,50/60HZ 15KVA
Temperature: 22±2℃/45%-65%
Noise: ≤75dBA
Air Pressure: 6.5-7.5bar



Product Datas:



X,Y,Z-axis Stroke 560mm*700mm*40mm
X,Y-axis Drive Imported High-power servo motor(Guaranteed transmission speed)
Z-axis Drive Imported servo motor
Feed Rate X,Y-axis 60m/min
Feed Rate Z-axis 30m/min
Max. Working Area 560mm*700mm*40mm
Drilling Diameter Φ0.2mm-Φ6.35mm
Drilling Accuracy ±0.025mm
Positioning Accuracy ±0.004mm
Replicate Positioning Accuracy ±0.0025mm
Max. Drilling speed 480-550hole/min
Spindle cooling method Water cooling
Machine Dimension 3300*2000*2000mm
Spindle Spacing 560mm



Notes:

The drilling speed depends on the thickness of the plate, the number of plates and the hole size. The drills on the 2*1.6mm PCB,for 0.3 holes the drilling speed is more than 460 holes/min; 0.5 holes,and the drilling speed is more than 510holes/min.





Our Service:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

Descriptions:

Customized & new generation PCB drilling machine



QIC System: Large and small pressure foot switching function to ensure small PCB board’s accuracy.

The CBDT electric contact automatic detection broken tool function is the timely response, and the hole can be used to monitor the edge collapse. It can be used as a fast drilling function.

Spindle configuration:

ABL/WESTWIND 160-180KTDM High-speed air-floating spindle for stable 100μm micro-hole machining, good macro hole and slot machining

Drive System:

Imported high-function, high-torque motor to ensure fast transmission speed

Transmission system:

Japan NSK high precision lead screw (fast, quiet)

German Rexroth P-precision Linear Guideway(High precision,long lasting)

Tool magazine selection

Upper-tool magazine:

Capacity 220 / pcs/ axis, can achieve full diameter tool without collar, short tool change time, easy to operate the upper and lower plates, don’t rotate the tool change.

Lower-tool magazine:

Large capacity of 300, easy to arrange the knife automatically, operate, replace the tool change, clean the tool, have little effect on the spindle

ontrol software:

Mature, stable advanced software control system, friendly interface and graphical simulation function, easy learning

Feedback system:

Imported as a closed grating ruler, dustproof and antifouling effect is very good

Tool Detection:

Imported Tool detection can realize tool length and tool diameter detection to ensure the accuracy of the drill



More pictures:
