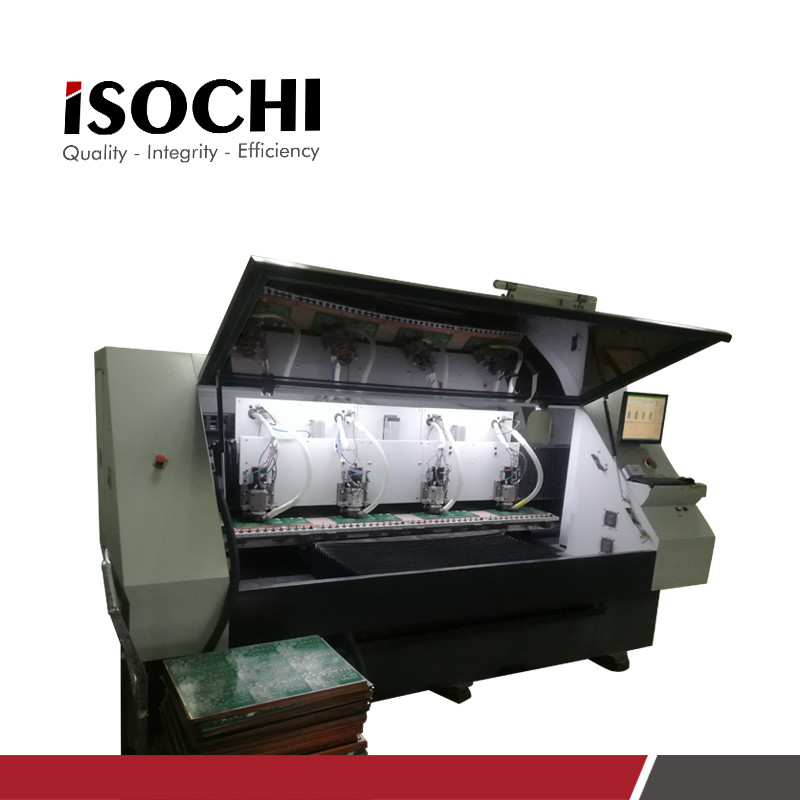

4 Axis CNC PCB Router Machine 60krpm ABL Westwind Spindle Automatic Tool Change

Basic Information
Place of Origin: China
Brand Name: ISOCHI
Certification: ISO
Model Number: ISC418
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard wooden case or according to customers' requirement
Delivery Time: 20 days
Payment Terms: T/T, , L/C
Supply Ability: 4 Sets per Month
Detail Information
Model No.:: ISC418 Machine Dimension:: 3300x2000x1680mm
X,Y,Z-axis Stroke:: 560mm*700mm*40mm Temperature:: 20±2℃/45%-65%
Power Supply:: 3PH-AC380V+N+PE,50HZ Air Pressure:: 6.5-7.5bar
Max Working Area:: 560x720mm Location Accuracy:: 0.005mm
Repeat Location Accuracy:: 0.0025mm Spindle Spped:: 60KRPM
High Light:

automatic router machine

,

pcb routing machine


Product Description

4 Axis CNC PCB Router Machine 60krpm ABL Westwind Spindle Automatic Tool Change



Working Conditions:



Power Supply: 3PH-AC380V+N+PE,50HZ
Temperature: 20±2℃/45%-65%
Air Pressure: 6.5-7.5bar



Product Datas:



X,Y,Z-axis Stroke   560mm*700mm*40mm
Feed Rate X,Y-axis 30m/min
Feed Rate Z-axis 15m/min
Max. Working Area 560mm*720mm
Spindle cooling method Water cooling
Tool Change Mode Automatic Tool Change
Location Accuracy: 0.005mm
Repeat Location Accuracy: 0.0025mm



Our Service:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

More pictures:



4 Axis CNC PCB Router Machine 60krpm ABL Westwind Spindle Automatic Tool Change 04 Axis CNC PCB Router Machine 60krpm ABL Westwind Spindle Automatic Tool Change 1
