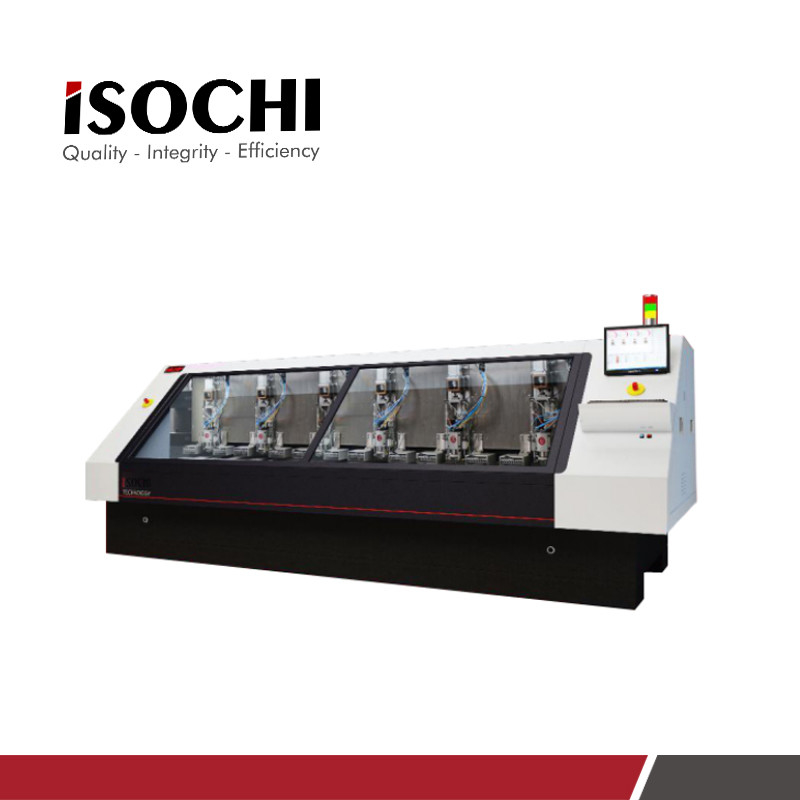

6 Spindle CNC PCB Drilling Machine , 160k-180krpm Automatic Drilling Machine

Basic Information
Place of Origin: China
Brand Name: ISOCHI
Certification: ISO
Model Number: ISC618
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard wooden case or according to customers' requirement
Delivery Time: 30 days
Payment Terms: T/T, , L/C
Supply Ability: 4 Sets per Month
Detail Information
Model No.:: ISC618 Machine Dimension:: 4420*2000*1680mm
X,Y,Z-axis Stroke:: 560mm*700mm*40mm Temperature:: 22±2℃/45%-65%
Power Supply:: 3PH-AC380V+PE,50/60HZ 15KVA Noise:: ≤75dBA
Air Pressure:: 6.5-7.5bar Broken Tool Detection:: Laser Tool Detector
Machine Weight:: 8000kg X,Y-axis Measurement System:: Imported Closed Linear Scale
High Light:

pcb drilling equipment

,

high speed drilling machine


Product Description

6 Spindle CNC PCB Drilling Machine , 160k-180krpm Automatic Drilling Machine

Working Conditions:

Power Supply: 3PH-AC380V+PE,50/60HZ 15KVA
Temperature: 22±2℃/45%-65%
Noise: ≤75dBA
Air Pressure: 6.5-7.5bar



Product Datas:

X,Y,Z-axis Stroke 560mm*700mm*40mm
X,Y-axis Drive Imported High-power servo motor(Guaranteed transmission speed)
Z-axis Drive Imported servo motor
Feed Rate X,Y-axis 60m/min
Feed Rate Z-axis 30m/min
Max. Working Area 560mm*700mm*6
Drilling Diameter Φ0.2mm-Φ6.35mm
Drilling Accuracy ±0.025mm
Positioning Accuracy ±0.004mm
Replicate Positioning Accuracy ±0.0025mm
Spindle Speed 160-180krpm ABL/Westwind(Optional)
Max. Drilling speed 480-550hole/min
Spindle cooling method Water cooling
Tool Change Mode Antomatic Tool Change
Machine Dimension 4420*2000*1680mm
Spindle Spacing 560mm



Notes:

The drilling speed depends on the thickness of the plate, the number of plates and the hole size. The drills on the 2*1.6mm PCB,for 0.3 holes the drilling speed is more than 460 holes/min; 0.5 holes,and the drilling speed is more than 510holes/min.



Our Service:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

More pictures:

6 Spindle CNC PCB Drilling Machine , 160k-180krpm Automatic Drilling Machine 0

6 Spindle CNC PCB Drilling Machine , 160k-180krpm Automatic Drilling Machine 16 Spindle CNC PCB Drilling Machine , 160k-180krpm Automatic Drilling Machine 2
