Hot salecnc drilling machine for pcb OEM/ODM pcb drilling machine price made in china

Basic Information
Place of Origin: China
Brand Name: ISOCHI
Certification: ISO
Model Number: ISC118
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard wooden case or according to customers' requirement
Delivery Time: 25 work days
Payment Terms: T/T, , L/C
Detail Information
Application: Printed Circuit Board Machine Beam:: Jinan Natural Granite,the Machine Body Is High Precision,
Model No.:: ISC118 Machine Dimension:: 1710*2100*1605mm
Drilling Diameter:: Φ0.2mm-Φ6.35mm Drilling Accuracy:: ±0.004mm
Positioning Accuracy:: ±0.004mm Replicate Positioning Accuracy:: ±0.0025mm
Spindle Speed:: 160-180krpm ABL/Westwind(Optional) Max. Drilling Speed:: 480-550hole/min
Tool Change Mode:: Automatic Tool Change BrokenTool Detection:: Laser Tool Detector
Machine Weight:: 4000kg Power Supply:: 3PH-AC380V+PE,50/60HZ 15KVA

Product Description

Single Head PCB Drilling Equipment 180000 RPM Strong Anti Interference For PCB

Our Service:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

Working Conditions:



Power Supply: 3PH-AC380V+PE,50/60HZ 15KVA
Temperature: 22±2℃/45%-65%
Noise: ≤75dBA
Temperature: 22±2℃/45%-65%


The drilling speed depends on the thickness of the plate, the number of plates and the hole size. The drills on

the 2*1.6mm PCB,for 0.3 holes the drilling speed is more than 460 holes/min; 0.5 holes,and the drilling speed

is more than 510holes/min.





Product Datas:

Model: SC118
Spindle Quantity: 1
Machine beam:

Jinan natural granite,the machine body is high precision,

less deformation and highly stable

Machine Dimension: 1710*2100*1605mm
X,Y,Z-axis stroke: 560mm*700mm*40mm
Z-axis drive: Imported servo motor
Max. Working Area: 560mm*700mm
Drilling Diameter: Φ0.2mm-Φ6.35mm
Drilling Accuracy: ±0.025mm
Positioning Accuracy: ±0.004mm
Replicate Positioning Accuracy: ±0.0025mm
Spindle Speed: 160-180krpm ABL/Westwind(Optional)
Spindle cooling method: Water cooling
Power Supply: 3PH-AC380V+PE,50/60HZ 15KVA
Noise: ≤75dBA





Notes:

The drilling speed depends on the thickness of the plate, the number of plates and the hole size. The drills on the 2*1.6mm PCB,for 0.3 holes the drilling speed is more than 460 holes/min; 0.5 holes,and the drilling speed is more than 510holes/min.



More pictures:

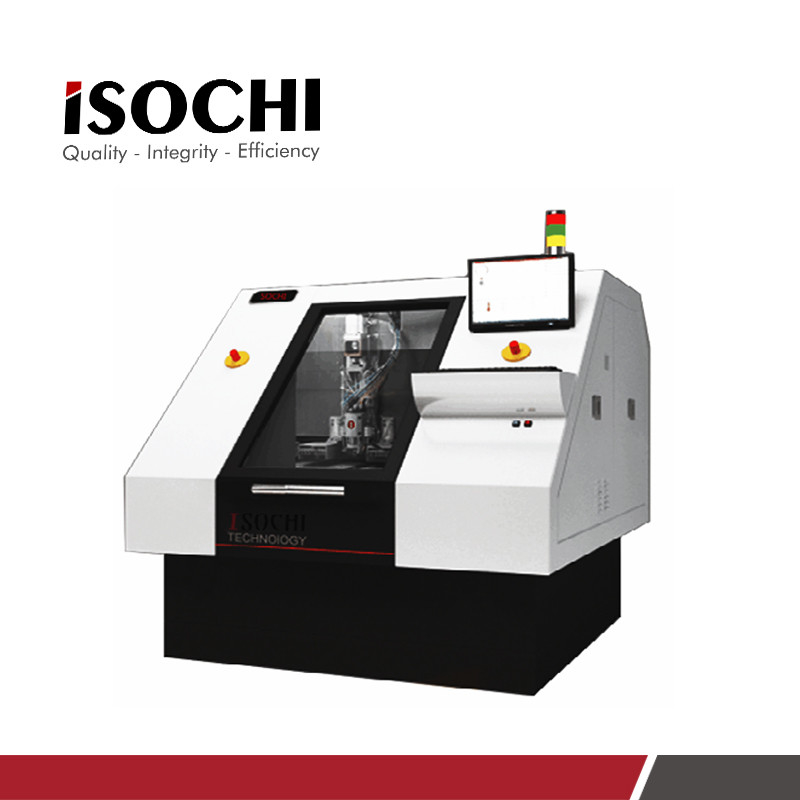

Hot salecnc drilling machine for pcb OEM/ODM pcb drilling machine price made in china 0

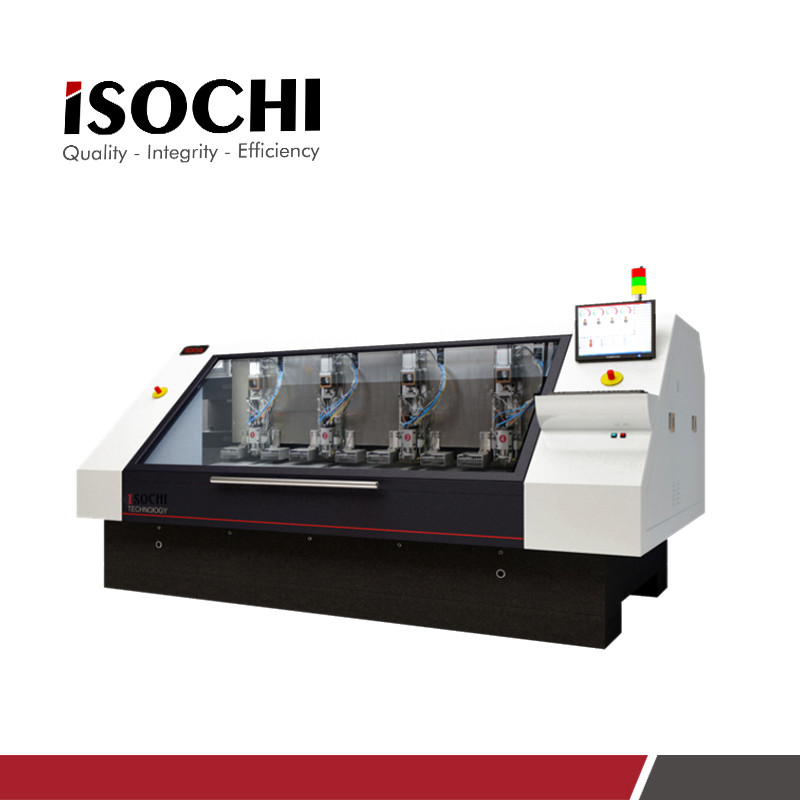

Hot salecnc drilling machine for pcb OEM/ODM pcb drilling machine price made in china 1

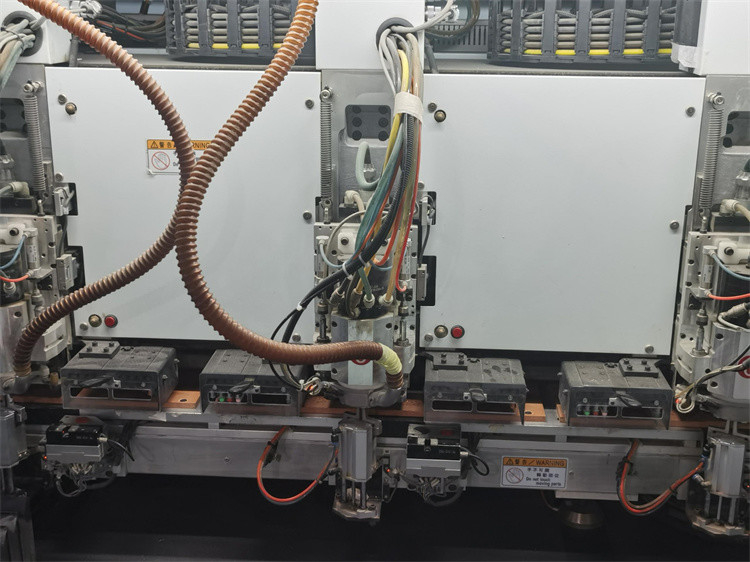

Hot salecnc drilling machine for pcb OEM/ODM pcb drilling machine price made in china 2
